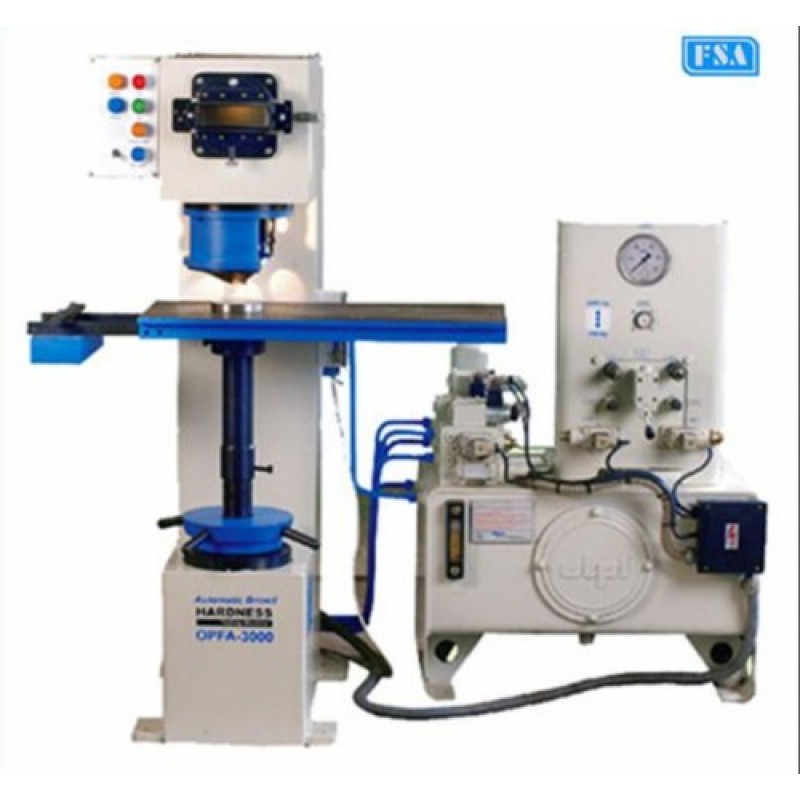

Automatic Optical Brinell Hardness Testers

Product Details :

Features:

• The machine has a robust, C-type load frame & has been designed for production testing of cast or forged
• Components like leaf springs, cam shafts, etc. for Brinell hardness value. This machine is suitable for foundries, engineering industry on production line.
• Since most of the operations are fast and automatic, the test speed is high with less operator fatigue.
• The cycle time (except loading / unloading) is about 12 seconds per test.
• Load stages – 750 kgf and 3000 kgf.
• Optical measuring equipment with 14 X magnification.
• Job loading / unloading, push button operation, pushing cycle start, de-clamp buttons are only manual operations & rest all is automatic.
• A push button is pressed for cycle start & hydraulic operations. After cycle time, impression is visible on screen, which (Diameter) is to be measured with the help of microscope of least count 0.01mm.
• Computerized model is available .Computerized model has built in CCD and suitable advanced software.
• Hardness will be displayed on computer monitor automatically. Results printout can be taken.
• Accuracy conforming to IS:2281.

Additional Information:

• Delivery Time: Within 30 days
