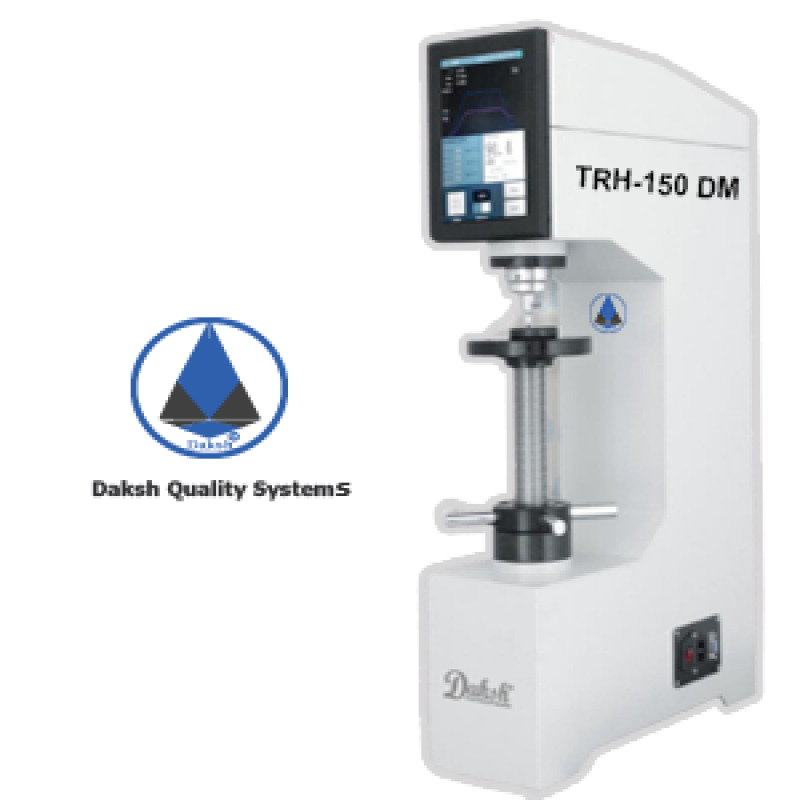

Advanced Digital Rockwell Hardness Tester TRH-150 DM

Product Details :

TRH-150DM

Hardness Tester TRH-150DM, adopted the international advanced closed-loop sensor controtechnology, to achieve full automatic control and hardness testing process. The load Ihsystem uses high-precision force value sensor :and central controller to form a closed-loop loop to achieve full microsecond level tracking and control of the booster process. The measurement system uses Japanese high-precision displacement sensor with a hardness value resolution of 0.1 HR

Product characteristics

• Meet the standards ASTM E18, ASTME384, ISO 6508
• The frame structure is strong and rigid;
• The high precision loading system effectively avoids the overloading of the measuring force, and at thesame time greatly improves the loading speed;
• The curve of test process is displayed, which can display the material characteristics intuitively, which isconvenient for observation and learning.
• High resolution LCD, touch screen operation, menu-type operation interface;
• The force selection and hardness scale selection are coupled;
• Dimensions: 438 x 376 x 685mm
• Internal printer;

Product Upgrade

• Automatic high-speed response closed-loop sensor loading system. The original system belongs to the millisecond level control system. Can not realize step control. The new system belongs to the microsecond levelcontrol system. Realize high-speed step control.
