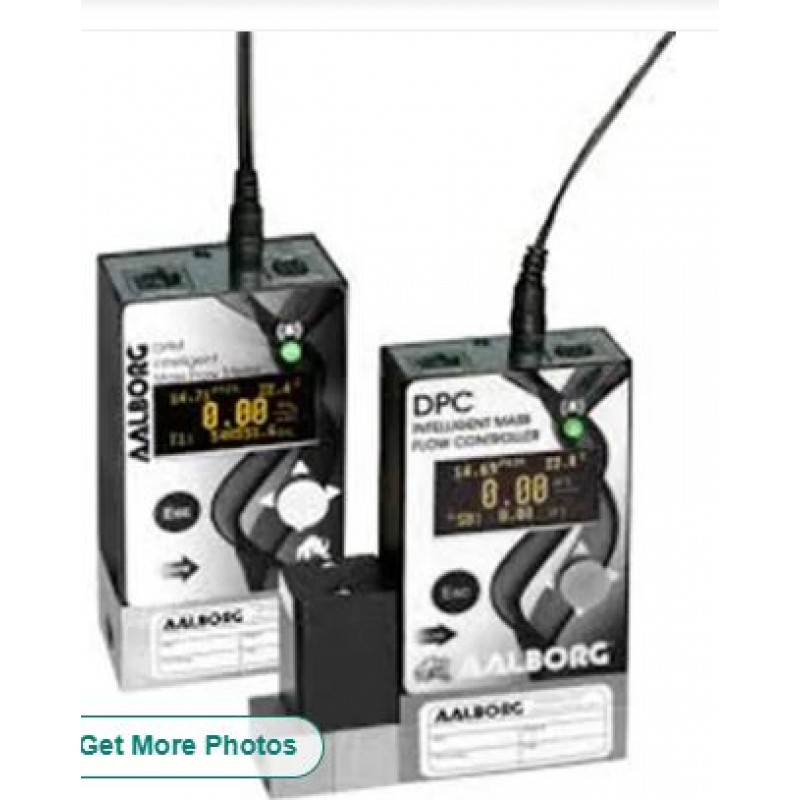

Mass Flow Meter
Product Details:
Design Features
Multi-Parameter functionality: Mass Flow, Volumetric Flow, Gas Pressure and Temperature.
Multi-Gas functionality: support for 90 different gases and gas mixes.
“User Defi ned Mixture” functionality allows to create and store up 20 custom gas mixes with up to 5 different gases each.
Quick (< 20ms) response time.
Standard accuracy ± (0.5% RD + 0.2% FS).
200 to 1 turndown ratio.
Two programmable mass fl ow rate totalizers.
High, Low or In Range Alarms with preset action delay for Mass Flow, Temperature and Pressure.
User programmable mass fl ow rate Pulse Output (via SSR).
Extensive Self Diagnostics with status LED or OLED indication.
All 3 user selectable analog output interfaces are standard: 0-5Vdc, 0-10Vdc, 4-20mA.
Two user selectable digital communication interfaces (RS-232 and RS-485) are standard.
Optional Modbus RTU network interface with isolated RS485 transceiver.
User programmable solid state relay with latch option.
Universal 9-26 Vdc power supply input.
Local high contrast OLED (optional) graphic display with joystick control.
Free, easy-to-use confi guration and calibration software (RS-232/RS-485).
