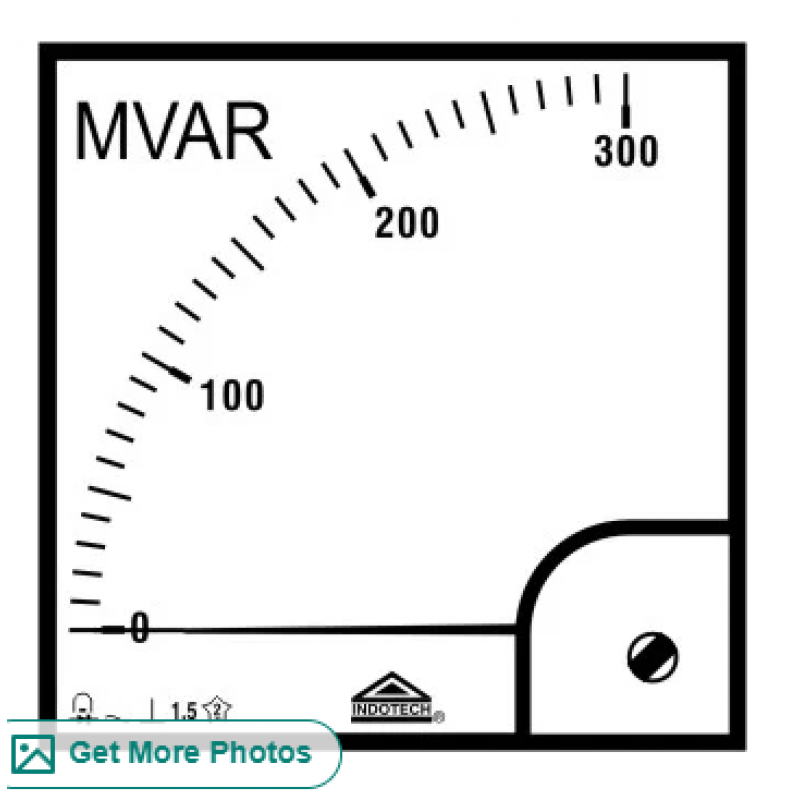

MVAR Meters
Product Details:

Shape	Customized
Voltage	Customized
Packaging Type	Customized
Brand	Customized
Model Name/Number	Customized
Display Type	Customized
Material	Customized
Phase	Customized
Usage/Application	Industrial

As a reputable company, we are engaged in providing the broad assortment of MVAR Meter. The offered product is manufactured by utilizing utmost-grade components and innovative technology by our experts in accordance with set industry quality norms. As per the customer’s variegated requirements, we provide the complete range of offered product in various technical specifications. Clients can avail this product from us at reasonable rates.
Features:

• Accurate readings
• Durable
• Energy efficient
• MVAR Meters, Analogue Type:
  General:
  Indotech Watt, Va, Var & Power Factor Meters Are Available In Following Type:
  Dynamo Meter Type: Current Coil & Volt Coil Interact To Give Direct Reading On Dial.
  Transducer Type: Electronic Transducer Gives Signal In Terms Of Dc Micro amps To Moving Coil Dc Meter Which Gives Reading Proportional To The Signal.
  Indotech Watt / Kw / Mw Meters: Watt meters Are Meant For Measuring Effective Power And Are Designed For Single Phase As Well As Three Phase Balanced & Unbalanced Loads
  Indotech Va/Kva/Mva Meters: Va Meters Are Meant For Measuring Apparent Power In 3 Phase Systems.
  Indotech Var/Kvar/Mvar Meters: These Are Used For Measuring Watt less Component Of Va In 3 Phase Systems.
  Indotech PF Meters: P.F. Of A Circuit Is The Ratio Between The Effective Power & The Apparent Power And Is Measured With The Help Of A Power Factor Meter.
  Technical Specification models Available: 72 x 72, 96 x 96 & 144 x 144 Mm Square.
  Accuracy: Class 1.0 As Per ISS 1248/03.
  Scale: Almost Linear From 1/10 To Full Scale In Case Of Watt/Kw/Mw, Va/Kva/Mva & Var/Kvar/Mvar Meters & 0.5 (Lag)-1-0.5(Lead) In Case Of Power Factor Meters.
  Type:
  Single Element Type For Single Phase A.C. Measurements
  Single Element Type For 3 Phase Balanced Load
  2 Elements Type For 3 Phase 3 Wire Balanced & Unbalanced Loads
  3 Elements Type For 3 Phase, 4 Wire Balanced & Unbalanced Loads
  Range: Current 1 A or 5 A & Voltage Up to 600 V With Internal Resistance. Higher Ranges With CT's & PT's.
  Note:
  72 X 72 Kw Meter is Available with extra transducer box
  Kva & Kvar Meter are not available in 72 X 72 size
  Refer Price list for more details regarding models/ranges available
