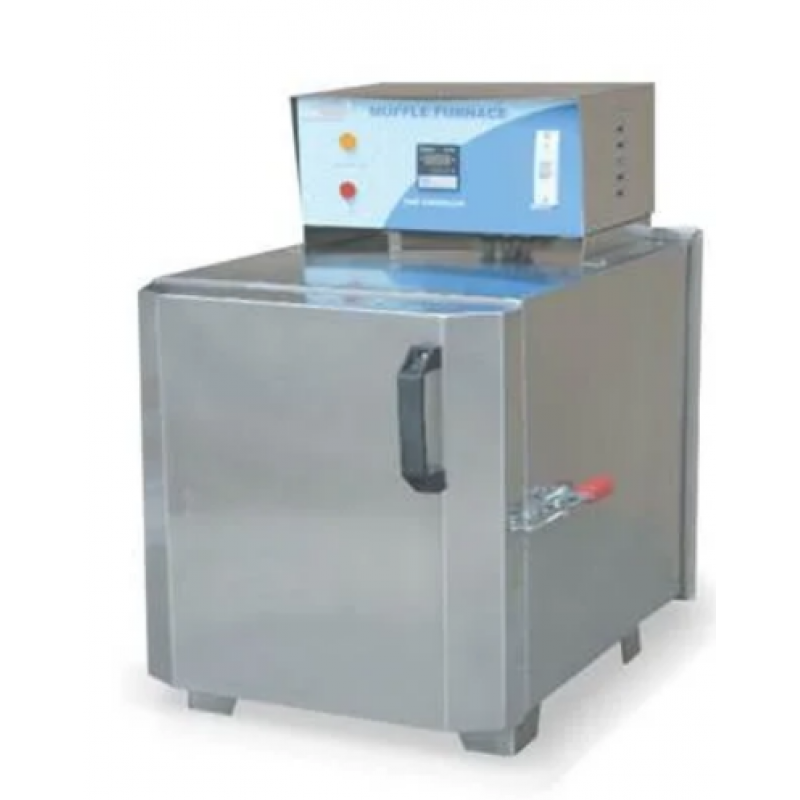

MUFFLE FURNACE

TECHNICAL SPECIFICATION

• Furnace finds application in Industries & Laboratories for Ashing, Heat treatment, Ignitiontest, Gravimetric analysis, Determination of volatile and suspended solids & Cement testing.
• Heavy gauge Mild Steel construction for durability having powder coating finish.
• Outer Casing Made from Stainless Steel - 304 grade in all GMP Models.
• Un-exposed long lasting KANTHALA-1 heating elements.
• Light Weight, Ceramic Fiber Wool insulation of High quality to give maximum thermal efficiency.
• Temperature controlled by Dual Display Microprocessor based PID Temperature Controller.
• Temperature Sensor: "K" Type (Cr/Al) Thermo couple sensor.
• Working Temperature Range: 4000C to 10500C or 4000C to 11500C
• Temperature Control Accuracy : + 30C.
• Operates on 230 Volts AC Single phase 50Hz.
• Two models : ( 1) Muffle For 10500C (2) Refractoryfor 11500C
