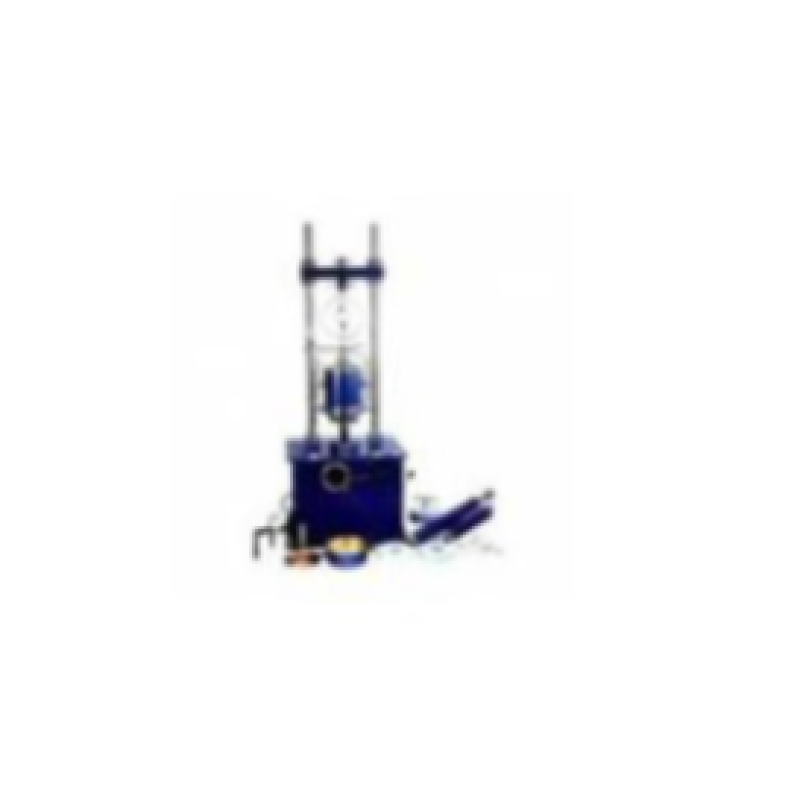

MOTORISED CBR MACHINE
Product Details:

• Consisting twin column frame and a motorized drive system.
• Capacity: 50 kN.

• Load Speeds: Selectable; 1.27 mm (0.5") or 1.0 mm.
• Horizontal Clearance: 255 mm (10").

• Vertical Clearance: 800 mm (31.5") maximum.
• Platen size: 133 mm (5.24") diam.

• Dimensions: 400 x 550 x 1,220 mm (15.75" w. x 21.65" d. x 48" h.).
• Weight: Net 48 kg (106 lbs.).

• Accessories (same standards as above)
• Penetration Piston Assembly.

• Proving Ring. 28 kN (6,000 lb.) capacity.
• Proving Ring. 50 kN (capacity. 11,200 l

• Penetration Dial Indicator. 25 mm range x 0.01 mm divisions.
• Dial Indicator Holder.
