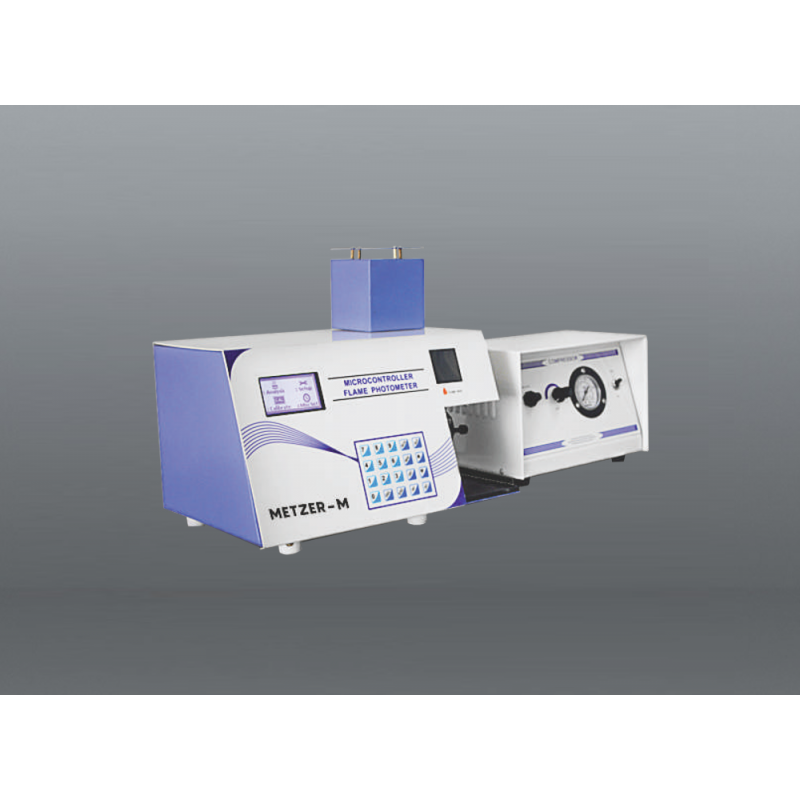

METZER–M MICROPROCESSOR BASED FLAME PHOTO METER MODEL METZ-803 M
Specifications:
- Display - Graphical LCD Display.
- Power Supply - 230V ± 10% AC, 50/60 Hz.
- Range & Resolution -Na : 0.1 – 100 ppm & K : 0.1 -100 ppm& 0.1 ppm/meq.
- Sensitivity - Na : 0.5 ppm & K : 0.5 ppm.
- Accuracy - ± 2% upto 100 meq/l , ± 5% above 100 meq/l.
- Detector - Silicon Photodiode.
- Filters - Filters for Sodium and Potassium.
- Flame System - LPG and dry oil free air.
- Reproducibility - 2% for 25 sample.
- Calibration - Up to 5-point calibration with curve fitting software.
- Range Selection - Automatic.
