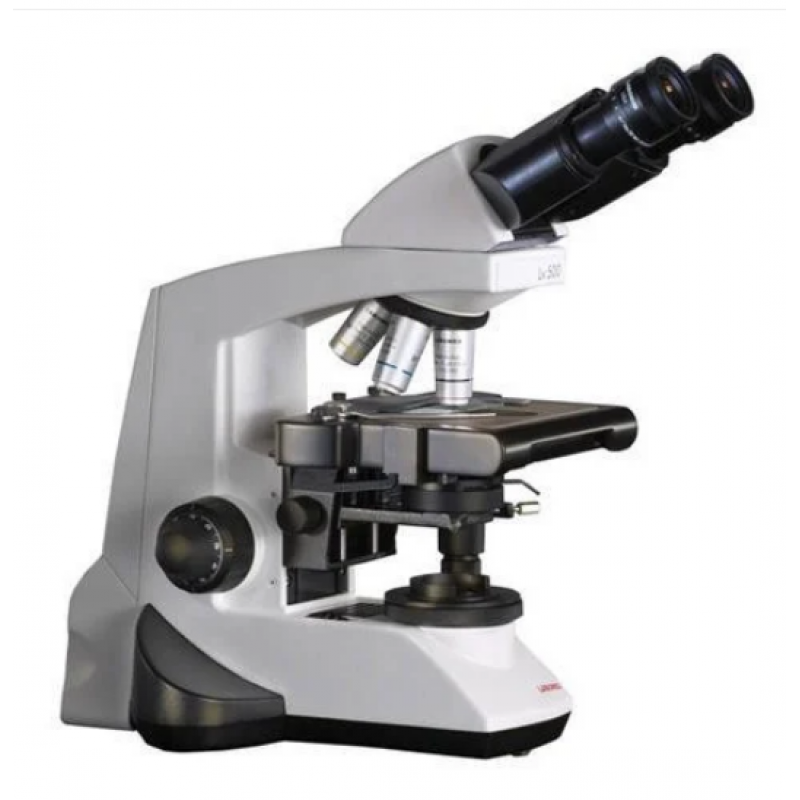

Lx500 Binocular Trinocular Microscope

Brand	Labomed
Nose Piece	3
Application	Laboratory

To cater the variegated needs of our esteemed customers, we are highly engaged in offering a wide array of Lx500 Binocular Trinocular Microscope.

General Specifications:

• High-grade infinity corrected plan achromatic, objectives & WF Eyepiece.
• Par-centered & parfocal on CNC machines.
• With 3W white LED on proper Heat Sink or 6v-20w halogen lamp.
• LED Life more than 50,000 Hours with built-in Back-up Battery for use when power supply failure.
• All moving parts on Ball Bearing Guides to give highly sensitive & smooth working.

Technical Specifications:

• Stand: Single mold Sturdy stand with anti rust materials. Extended base for better stability with ceramic coated stage plate.
• Viewing Bodies: Optional
• Mechanical Stage: Rackless X-axis, Ceramic Coated double plate mechanical stage size 200 x 160mm X/Y travel range 76 x 40mm.
• Slide holder to accommodate up-to two slides.
• Condenser: Sub-stage abbe condenser NA 1.25 with aspheric lens and Iris diaphragm.
• Rack and pinion movements on stainless steel guides.
• Day light blue filter provided.
• Optional available with flip top lens
• Focusing: Co-axial coarse and fine focusing on gear systems for extremely smooth operation
• Illumination: LED illumination with variable illumination control.
• Rechargeable lithium Ion battery provides long hours of battery backup in case of electricity failure.
• Illumination: Halogen 6V-20W illumination with variable illumination control.
• Electrical: For LED Input 180v-250v AC or for HL Input 220v-240v AC with removable imported cord.
• Packed in a styrofoam box with operation manual, dust cover, cleaning cloth and power cord.
