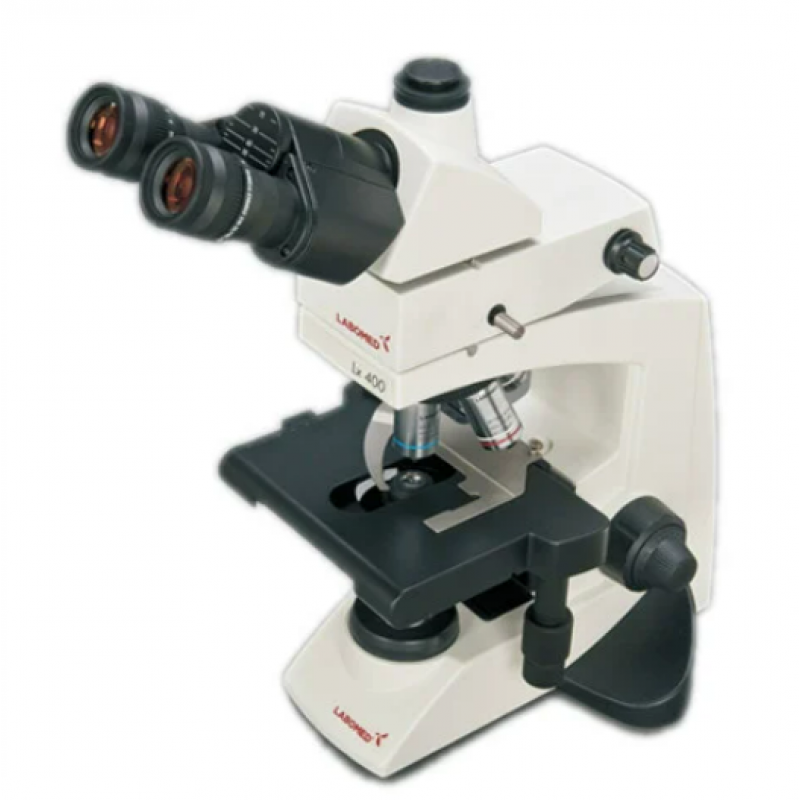

Lx400 eFLLED Fluorescence Microscope

Brand	Lamomed
Application	Laboratory
Excitation	450-480nm

Backed by profound experience of our experts, we are an unparalleled name engaged in providing a high-quality assortment of Lx400 eFL LED Fluorescence Microscope.

General Specifications:

• Epi-illumination is a 100-watt high-pressure mercury lamp
• B-Excitation block comprises
• Excitation: 450-480nm
• Barrier: 515nm
• Dichroic: 500nm
• G-Excitation Block Comprise
• Excitation: 510-550nm
• Barrier: 590nm
• Dichroic: 570nm

Technical Specifications:

• Stand: Single mould sturdy stand with anti rust materials.
• Extended base with hand rests for enhanced stability and comfort.
• Nosepiece: Reverse angle quadruple nosepiece (Ball bearing loaded) with click stops and rubber grip.
• Par- centered & parfocal on CNC machines.
• Mechanical Stage: Rackless X-axis, double plate mechanical stage size 200 x 160mm X/Y travel range 78 x 54mm.
• Low drive movement controls.
• Hard coated surface for scratch resistance.
• Slide holder to accommodate up-to two slides.
• Condenser: Sub-stage abbe condenser NA 1.25 with aspheric lens and Iris diaphragm.
• Rack and pinion movements on stainless steel guides.
• Day light blue filter provided
• Focusing: Co-axial coarse and fine focusing on ball drive system for extremely smooth operation.
• Sub-stage bright field illumination: Halogen 6v-20w illumination with variable illumination control.
• Electrical: Input 220v-240v AC with removable imported cord.
• Orange colored plastic screen to safeguard the operator from UV light.
• Packed in Styrofoam box with operation manual, dust cover, cleaning cloth, power cord.
