Low Profile Compression Load Cell
Product Details:

Brand	ADI
Model	T20
Ingress Protection	IP68
Application	Weighbridge
Features	Low profile
Material	Stainless Steel
Output Sensitivity(FS)	2.0 +/-0.1 mV/V
Combined Error	+/- 0.05% FS
Temperature Effect on Zero	+/-0.0020% FS/DegC
Temperature Effect on Output	+/-0.0036% FS/DegC
Zero balance	+/- 2.0% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	200% FS
Recommended Excitation Voltage	5 to 15V DC
Maximum Excitation Voltage	15V DC
Input Resistance	800 +/- 30 Ohms
Output Resistance	700 +/- 5 Ohms
Insulation resistance at 50V DC	>= 5000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperature Range	-30 to +70 Deg C
Cable Length	10 m

We are one of the leading manufacturer and supplier of Low Profile Load Cell. We obligated to meet the quality standards as per the industrial norms.

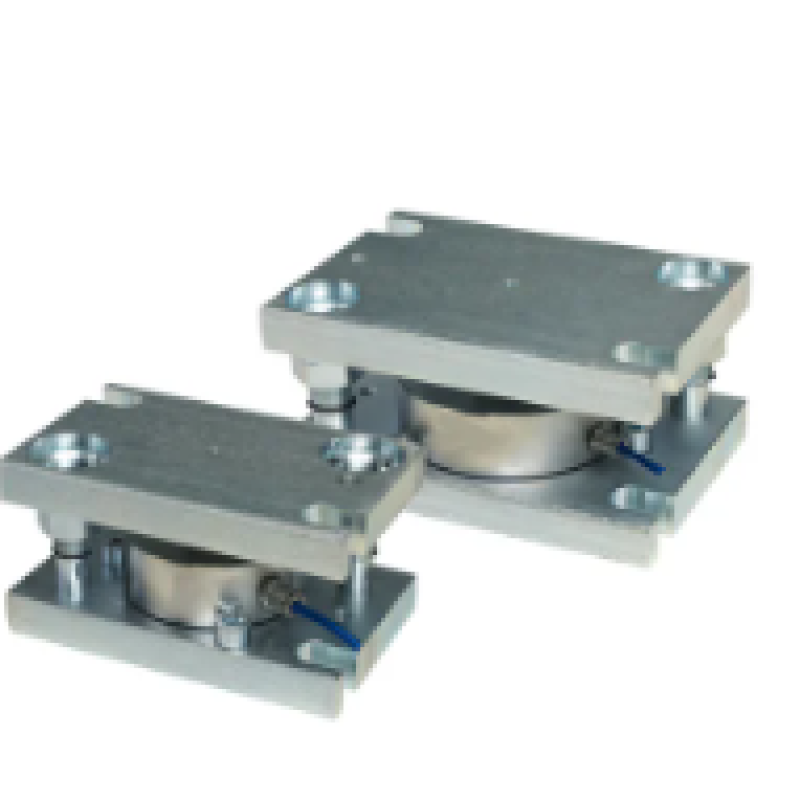

Vessel weighing problems solved simply and cost effectively. The T20 stainless steel compression load cell is specifically designed as a reliable, simple, low cost solution for weighing of tanks, silos and vessels where level measurement is the main criteria. The load cell is mounted in either a zinc plated or stainless steel low profile, extremely compact mounting assembly which has integral jacking to allow load cell installation and removal, lift-off prevention and allowance for angular mis-alignment. The design is suitable for use either as a totally live system with load cells under all legs/support points of the vessel or where cost is paramount, in a dummy system with either one live and two dummy cells or two live and two dummy cells.
