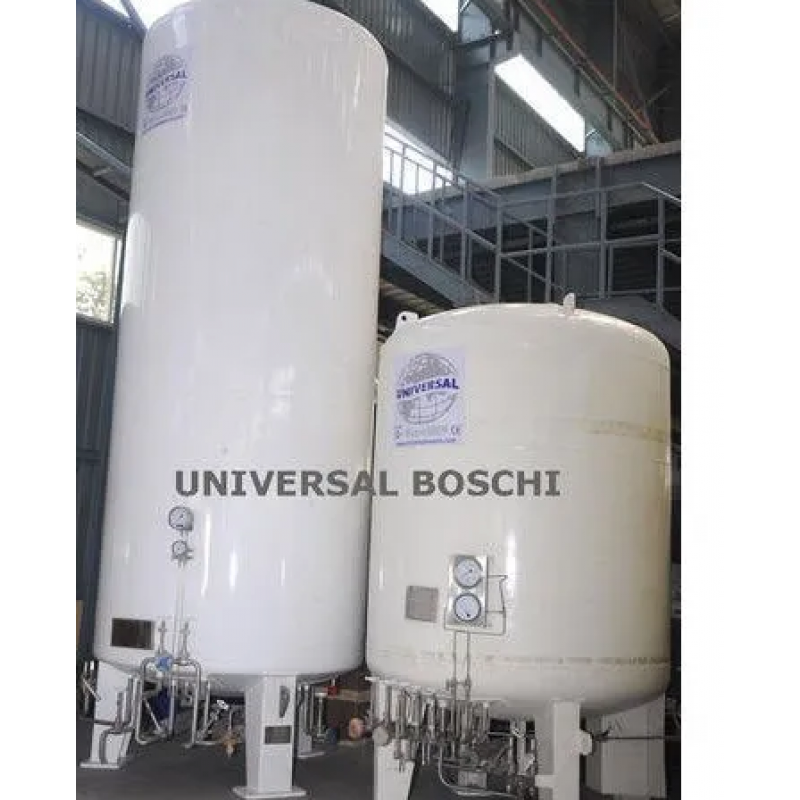

Liquid Oxygen Storage Tank
Product Details:

Capacity	0-250 L, 250-500 L, 500-1000 L, 1000-5000 L
Storage Material	Chemicals/Oils, Gases
Brand	UNIVERSAL BOSCHI
Usage/Application	Fuel Transportation
Orientation	Vertical
Surface Finish	Polished
Liquid Oxygen Purity	99.7%
Liquid Nitrogen Purity	99.9%
Operating Air Pressure	0.5 to 15 Mpa

Liquid Oxygen Tank is made up of a double walled cylindrical tank. The space between inner and outer vessel consists of insulating material to safeguard it from the surrounding heat. The space is evacuated to a high vacuum in order to ensure minimum evaporation. The cold convertor used in the cryogenic storage tank is equipped with pressure building arrangement with automatic pressure build-up regulator. Designing of the liquid oxygen storage tank is done in way to ensure that it is sturdy, compact and easy to operate. Top end liquid filling decreases the pressure inside the tank and the bottom filling increases the pressure. The pressurizing system is used for increasing the pressure when the liquid oxygen is uploaded to tanks or gas line vaporizers. As the pressurizing system is used for regulating the opening of both top and bottom filling valve, there is almost no change of pressure during liquid delivery. It enables constant liquid supply to vaporizer. Liquid oxygen storage tank can store liquid oxygen at temperatures up to (-196°C) with capacity ranging from 200 liters to 1, 50,000 liters with option of low and high pressure. Cold convertors are used for supplying pressure pipe line networks after gasification in atmospheric heat exchangers, storage tank networks or tanks of smaller capacity for low liquid temperature directly.
Salient features:
Simple tube structure
No need to replace the insulation material regularly
Excellent insulation and low static evaporation
Convenient system operation and small area requirement
The tanks can supply cryogenic liquid from the bottom by connecting it to an outer vaporizer and cryogenic pump. We can supply the whole system along with the valve system and piping based on the customer requirement.
Low area requirement, safety
Simple operating convenience
Vacuum powder insulation cryogenic tanks are used to supply liquefied oxygen, nitrogen, argon and other liquefied gases.
