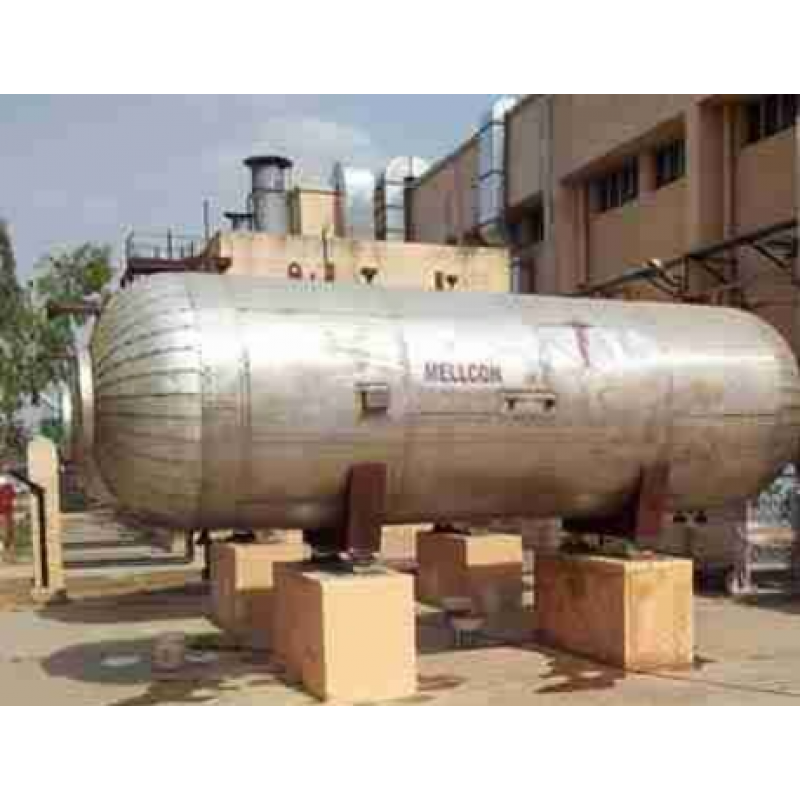

Liquid CO2 Storage Tank
MELLCON' the premier ISO - 9000 organization in the manufacturing of pressure vessels and approved by all major consultants in India now offer Skid mounted pre-engineered tankage for LIQUID CO2 STORAGE TANKS ( Carbon dioxide gas Storage Tanks ) having the storage capacity range from 3,000 kgs to 50,000 kgs of liquid carbon dioxide duly approved by Chief Controller of Explosives as per
SMPV Rules. (pdf).
These are designed as per the recommendations in IS-2825 / ASME Sec Vlll DlV - 1 codes and the material of construction are SA-516/ IS-2062/ IS-2002/SS-304 or as per the specific requirement of the customer meeting al the Requirements .
The vessel can be horizontally and vertically. mounted with 175 mm thick Insulation and aluminum cladding. The surfaces are wire brushed and sand blasted before painting. The painting is done with 2 coats of zinc chromate primer followed by 2 coats of enamel paint.
The vessels are stage wise inspected by our Inspection engineers as per the recommendations of the relevant code and the Chief controller of explosives norms. All welding are performed by qualified welders only. Finally it is hydro tested and de-hydrated with dry nitrogen.
MELLCON also offers these tanks under any third party inspection according to customers specific requirement.
These storage tanks are equipped with all standard instruments and controls like safety valves, Pr. gauges, Pump, Valves, Piping, Drains, Pr. Regulators, Control panel and optional accessories like Refrigerated vapor recovery systems, Vaporizers , Pressure reducing Station etc.etc. Optionally a Digital weighing scale can also be supplied as an integral part.
Estimated OVER ALL SIZES (Approx) CAPACITY (TONNES) LENGTH (Mtrs) WIDTH(Mtrs) HEIGHT(Mtrs) EMPTY wt. (KG) APPROX. 3.0 3.5 1.5 2.0 3400 6 4.5 1.8 2.2 4100 12 6.0 2.2 2.5 6400 16 7.5 2.2 2.7 8500 24 9.5 2.4 2.8 14700 30 12.0 2.6 2.8 20000 40 11 3.0 3.6 22000 50 12 3.2 3.8 25000 60 14 3.2 4.0 28000 80 16 3.4 4.2 31000 100 18 3.6 4.4 34000
MELLCON' the premier ISO - 9000 organization in the manufacturing of pressure vessels and approved by all major consultants in India now offer Skid mounted pre-engineered tankage for LIQUID CO2 STORAGE TANKS ( Carbon dioxide gas Storage Tanks ) having the storage capacity range from 3,000 kgs to 50,000 kgs of liquid carbon dioxide duly approved by Chief Controller of Explosives as per
SMPV Rules. (pdf).
These are designed as per the recommendations in IS-2825 / ASME Sec Vlll DlV - 1 codes and the material of construction are SA-516/ IS-2062/ IS-2002/SS-304 or as per the specific requirement of the customer meeting al the Requirements .
The vessel can be horizontally and vertically. mounted with 175 mm thick Insulation and aluminum cladding. The surfaces are wire brushed and sand blasted before painting. The painting is done with 2 coats of zinc chromate primer followed by 2 coats of enamel paint.
The vessels are stage wise inspected by our Inspection engineers as per the recommendations of the relevant code and the Chief controller of explosives norms. All welding are performed by qualified welders only. Finally it is hydro tested and de-hydrated with dry nitrogen.
MELLCON also offers these tanks under any third party inspection according to customers specific requirement.
These storage tanks are equipped with all standard instruments and controls like safety valves, Pr. gauges, Pump, Valves, Piping, Drains, Pr. Regulators, Control panel and optional accessories like Refrigerated vapor recovery systems, Vaporizers , Pressure reducing Station etc.etc. Optionally a Digital weighing scale can also be supplied as an integral part.
| Estimated OVER ALL SIZES (Approx) | ||||
|---|---|---|---|---|
| CAPACITY (TONNES) | LENGTH (Mtrs) | WIDTH(Mtrs) | HEIGHT(Mtrs) | EMPTY wt. (KG) APPROX. |
| 3.0 | 3.5 | 1.5 | 2.0 | 3400 |
| 6 | 4.5 | 1.8 | 2.2 | 4100 |
| 12 | 6.0 | 2.2 | 2.5 | 6400 |
| 16 | 7.5 | 2.2 | 2.7 | 8500 |
| 24 | 9.5 | 2.4 | 2.8 | 14700 |
| 30 | 12.0 | 2.6 | 2.8 | 20000 |
| 40 | 11 | 3.0 | 3.6 | 22000 |
| 50 | 12 | 3.2 | 3.8 | 25000 |
| 60 | 14 | 3.2 | 4.0 | 28000 |
| 80 | 16 | 3.4 | 4.2 | 31000 |
| 100 | 18 | 3.6 | 4.4 | 34000 |
