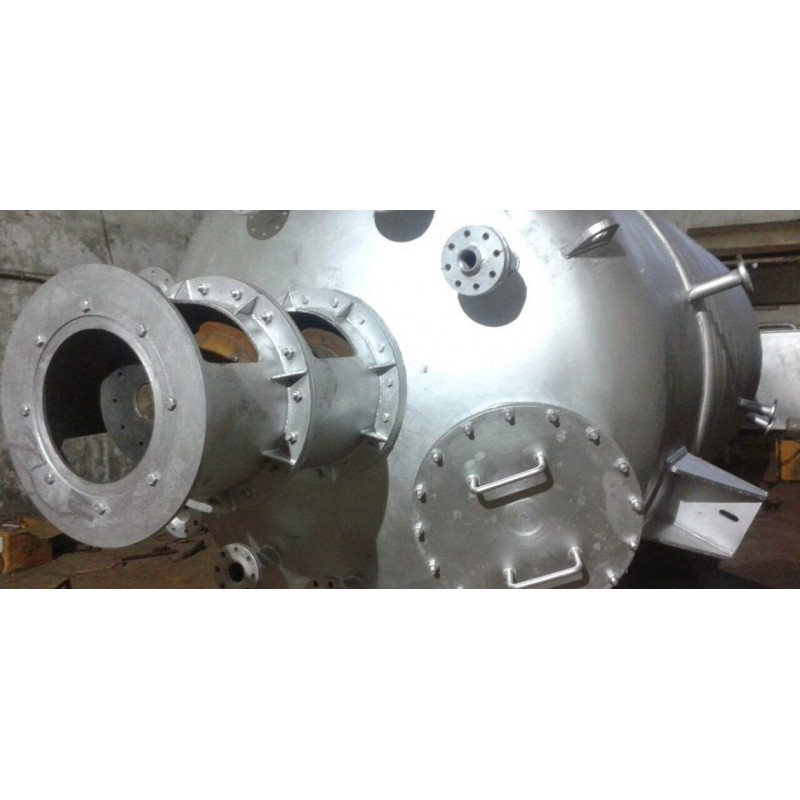

Limpet Reaction Pressure Vessel

Product Details :

• Brand: Karadani Engineering Pvt Ltd
• Item: Chemical Pressure Vessel
• Material :- Stainless Steel ,Mild Steel ,Carbon steel ,BQ Plate
• Design Code :- ASME SEC VIII DIV 1 , Good Engineering Practices
• Capacity :- 100 liter To 50,000 Liter

Description

• Karadani Engineering Offering You Chemical Pressure Vessel Is leak proof nature, high temperature resistance and low maintenance. We offer these vessels at a reasonable price
• Wide range of volumes From 500ltr – 50,000ltr
• Construction Material grade Is stainless steel SS316 , SS316L , SS304 , SS304L ,Mild Steel ,BQ Plat our Process Reactor Tank are regarded for their attributes like


Product Specification

• We have made the Chemical Pressure Vessel as a standard apparatus in the chemical industry and its basic work is for mixing processes and for chemical reactions in the liquid phase. The vessel can be easily operated in batch mode with temperature going up to 150*C To 500 C Depending on the requests of the process the agitated vessel consists of unalloyed or alloyed steel .
• Jacketed Reaction Vessel consist of a Cylindrical vertical shell with standard Tori spherical/ Ellipsoidal dish on both ends. A Jacket is provided on the Outside of the shell for Heating & Cooling Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel

• Limpet Reaction Vessel consist of a Cylindrical vertical shell with standard Tori spherical/ Ellipsoidal dish on both endsLimpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel
• Agitator assembly mounted on the Top dish of Jacketed Reaction Vessel consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Shaft Can fitted with different types Of Agitator Such as Single Anchor, Double Anchor, Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement


Application Industries

• – Pharmaceuticals Industry
• – Petrochemical Industry
• – Chemical Industry
• – Oil Refineries
