Level Measurement

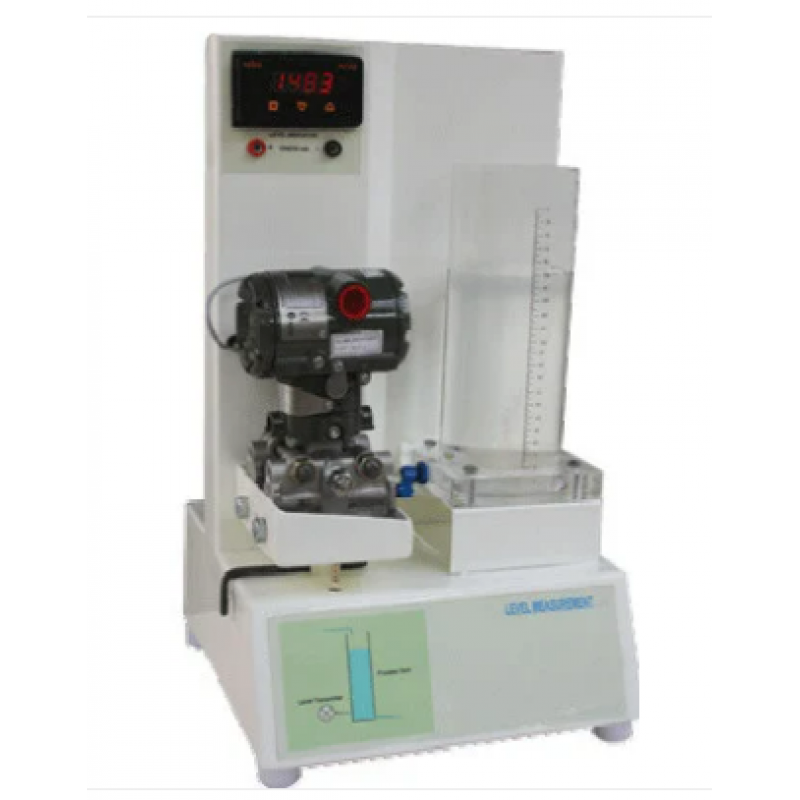

Level Measurement system is designed for understanding the basic principles of level measurement. The level transmitter used for level sensing is fitted on transparent process tank. The Level is displayed by digital indicator. Units along with necessary piping are fitted on support housing designed for tabletop mounting. All the components along with necessary piping and fittings are mounted on support housing designed for tabletop mounting. Set-up enables Level measurement system Working, calibration, accuracy, and repeatability.

Features:

• Table mounted set-up
• Compact and simple to operate
• DP transmitter moved UP and DOWN

Experiments:

• Study of Level measurement
• Study of DP calibration

Utilities required:

• Electric supply: 230 /- 10 VAC, 50 Hz, 1 phase.
• Water: Clean water 2 Liter
