Level Control Trainer (with DPT as level Transmitter)

Process Control Trainers

SPECIFICATION
Order Code - 52226

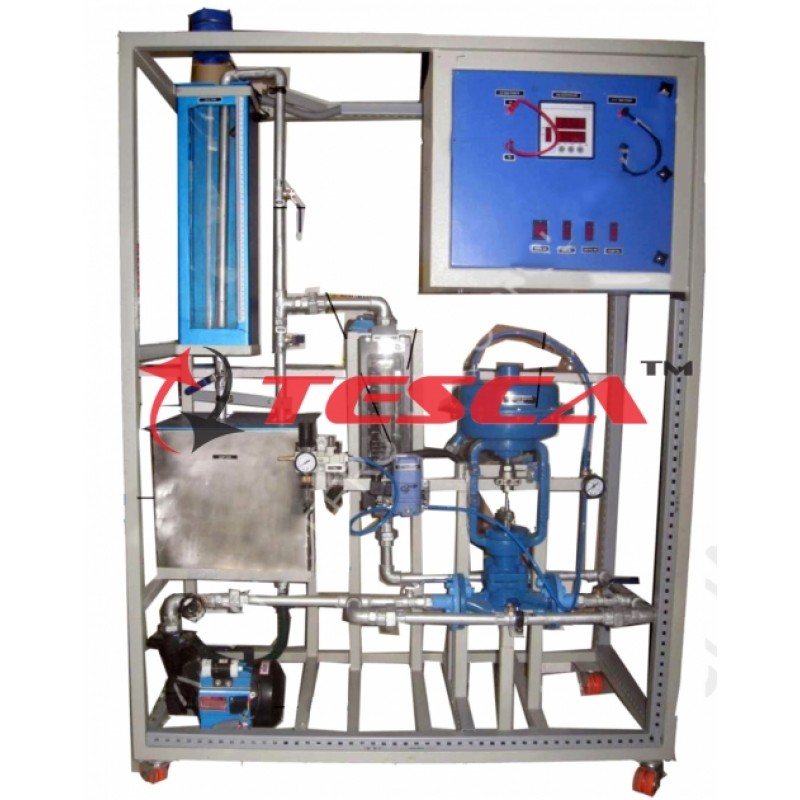

Level Control Trainer (with DPT as level Transmitter)
The Level Control Trainer is the system, which outlines the basics of Closed Loop Level Control and various aspects related to it.

KEY WORDS:
Feedback Level control.
Open & close loop response.
USB/RS232/RS485/Ethernet/ Modbus Communication.
SCADA Based Level Control
Ability to hook up with DCS (Distributed Control System Trainer)
Transient Response analysis study
ON-OFF & PID control.

RANGE OF EXPERIMENTS
Study of single loop Feedback Proportional (P), Integral (I) and Derivative control (D) actions.
Study of STEP response & Transient response of controller ( process curve).
Study of tuning and operation of PID controller.
Study of stability of single loop Level Control System.
Study of OPEN LOOP/CLOSE LOOP TUNNING & AUTO TUNNING of controller.
Configure microcontroller based controller to give manual output, changing controller modes (Manual/Auto),
Checking ON-OFF, Proportional, Integral, Derivative, PI and PID control actions, Change local Set point, configure and run a set point ramp, configure measured values to either percentage or Engineering units.
Study of Communication Protocols and interfacing of System with DCS / SCADA etc.
Study of SCADA Application Software/ Computerized Control of Level Control System.
Study of operation and calibration of transmitters, I/P converter and Control Valve.

FEATURES
Illustrates the concept of feedback Level control loop.
Inbuilt Safety Measures to avoid improper usage.
Leak proof Safety Measures, sturdy piping.
User Friendly, Self Explanatory Systems.
Enhanced Electrical Safety Considerations.
Training Manual & Mimic Charts for Operation Ease.
System Frame with Caster Wheel Arr
M.S. powder coated cubical plant with standard Instrument Mountings.
Inbuilt Safety Measures to avoid improper usage.
