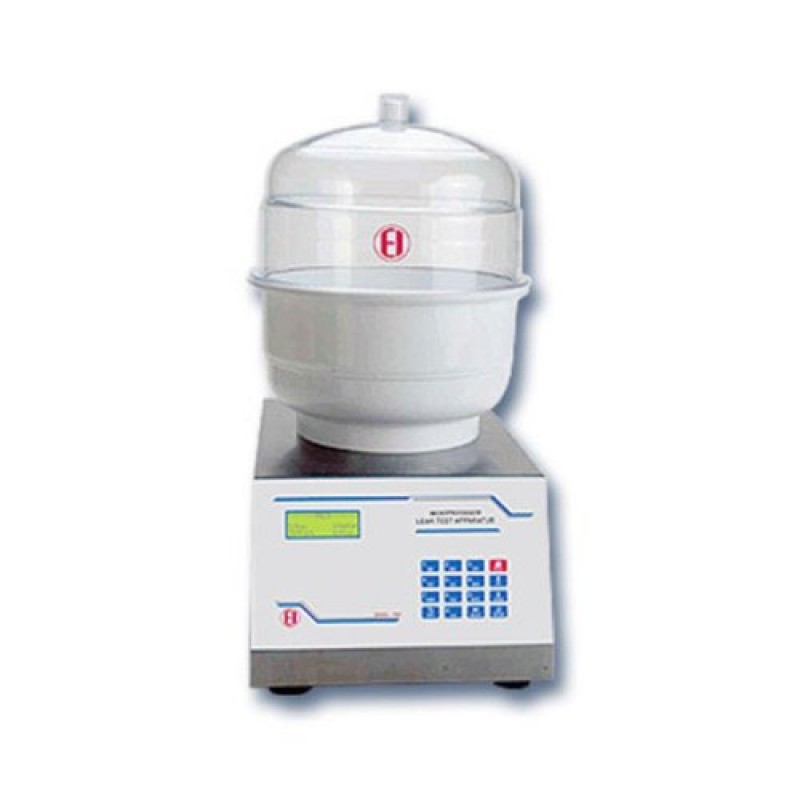

Leak Test Apparatus

Product Details :

Brand	EI
Model Name/Number	1961
Material	SS
Vacuum Range	150-600mm Hg
Vacuum Setting	Vacuum Can Stabilize For a Set Value Less Than 400mm Hg +- 10mm Hg within 30 Seconds
Desiccator's Size	6" ,10" ,12"
Display	20x4 Line Alphanumeric LCD With Backlit
Hold Time	15-999 Sec
Power	230V +- 10% AC, 50 Hz
Weight	13 Kg. (Approx.)

Other Details :

SALIENT FEATURES:-

• Extremely Useful for Packing Industry
• Ideal for Leak Testing of Strips, Blisters & Sachets
• Microprocessor Based, Easy to Use
• Programmable Vacuum & Hold Time
• Selectable Pressure Units
• 5 Setup Storage Facility
• Last Result Storage Automatically
• Printer Attachment Facility

TECHNICAL SPECIFICATION:-

Display

• 4 Seven Segment Bright Red LED Display in Model-961

Keyboard

• Soft Touch Membrane Keys.Alphanumeric mobile keypad in Model-1960,Provision for attaching a PS2 Computer Keyboard is also available in model-1961 Printer

• Attachment of DOT Matrix Printer with Cenronics/Parallel interface(Only Model-1961)

Setups

• 5 Programmable user setups for quick analysis (Only Model-1961)

Hold Time

• Up To 9999 Secs. (In Model-961)
