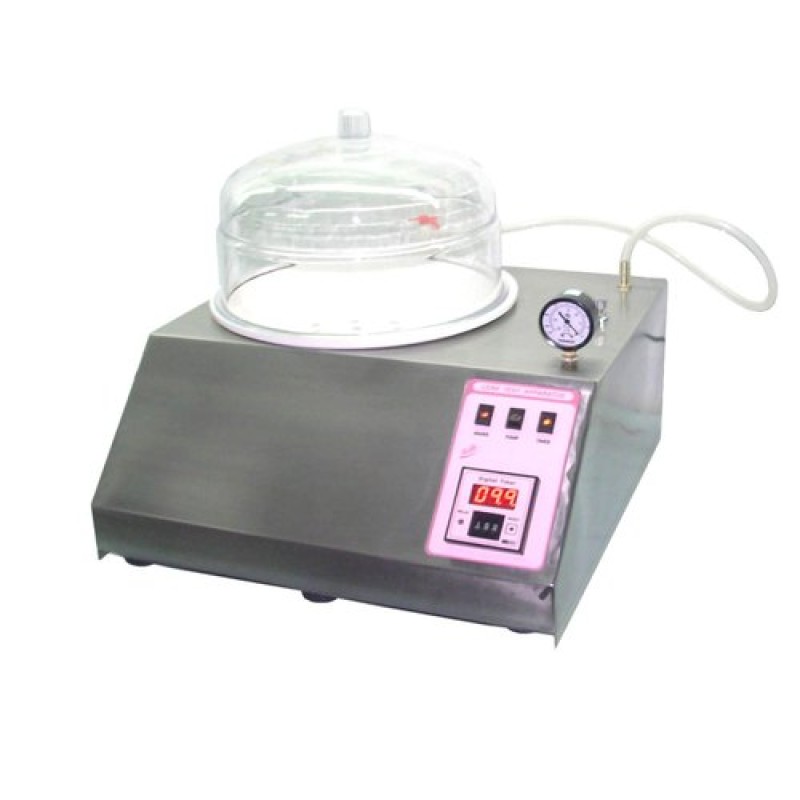

Leak Test Apparatus

Product Details :

Test method :- the leak test apparatus is used to check the quality of packaging, also during packing machine setting and improcess quality control . Our Fully Automatic Leak Test Apparatus give reliable,economical and fully calibrated solution in quality assurance for testing of tablet strip , blister pack, sachet shampoo and candies , injectable vials etc

Detail: Leak Test Apparatus :

1) Power supply: 230Vac -10%,50hz -5% single phase.

2) Vacuum Stabilisation : Fast Vacuum stabilization within 30 secs for 400 mm of Hg /- 5 mm of Hg

3) Vacuum Release : Automatic Release of Vacuum pressure after completion of cycle.

4) Display : Graphical LCD display of 128 x 64(Much bigger and better than 20 x 4 )

5) Keys : Imported soft touch membrane Key

6) Printer - Inbuilt Thermal printer . Not need of any external printer.

7) Timer : Programmable vacuum and Hold Time and Retention time upto 9999 sec.

Accessories will be supplid with equipment :-

1) Main Apparatus -- 1 no (cat no hamco155Aac1)

2) Vacuum Dessicator of 8/10/12 inches (cat no hamco155ac2/8, hamco155ac2/10, hamco155ac2/12 )

3) Tubing 1 mtr Length (cat no hamco155ac3)
