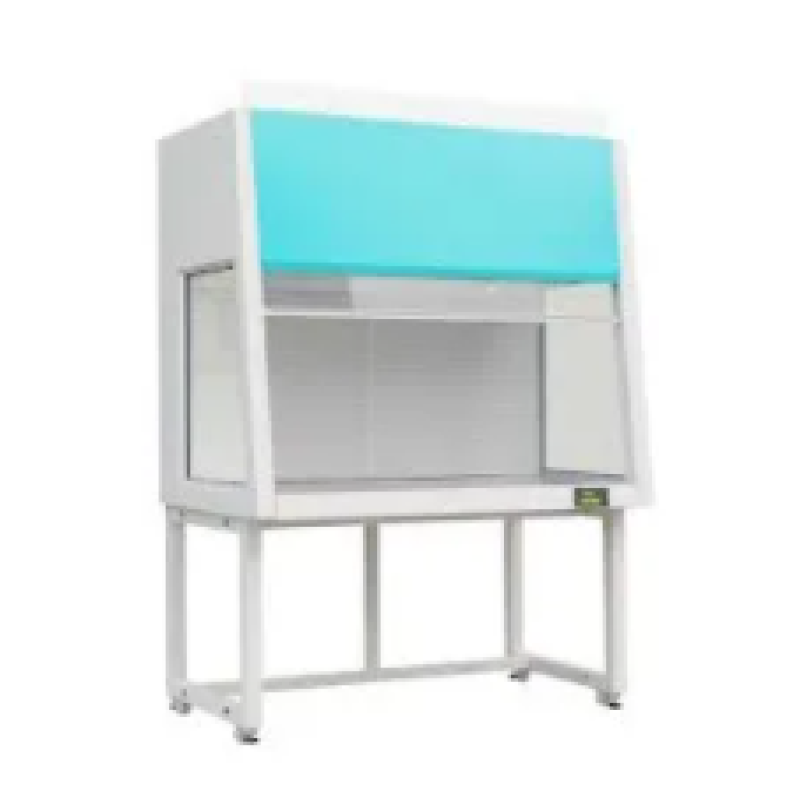

Vertical Laminar Air Flow

Product Details :

We are one of the quality-focused manufacturers and suppliers of an outstanding quality range of Vertical Laminar Air Flow. Used to make a work space bacterial, fungal, air born particle and dust free, these cabinets find huge application in Hospitals, Pharma, Biotech, Blood banks and Medical testing Labs. Vertical Laminar Air Flow is manufactured using high-grade stainless steel and taking assistance from the most advanced technologies that is available at our manufacturing unit.

Features :

• Convenient to use
• Digital display systems
• Available in various models

Vertical Laminar Air Flow

Laminar air flow - Vertical

Bio breeze make Laminar Air Flow cabinets are designed to achieve a Bacterial, Fungal and Air born particle/dust free work space with a Class-100 level of Hygienic condition. We offering Ergonomically designed Laminar air flow Vertical work benches are widely used for day to day Microbiological, Pathogenic and Biotechnology testing lab applications in various Laboratories. According to the Filter life and Energy saving, we having 3 models are

1. Basic Model 2. Standard Model 3. Superior Model

It is need to handle a low-risk Biological / Non Biological substances or materials under a Linier air flow work station to protect the Material handled from environment.

MOC of Construction :

1. Fully SS 304 construction with PVC mat 4 finish

2. GI Powder coating / Painting Constriction with SS 304 working area

Technical Specifications :

• Direction of flow : Vertical
• Cleanliness : CLASS 100
• Velocity : 90 FPM + 20%
• HEPA Filter : 0.3micron with 99.997% efficiency
• Particle retention : Above 0. 3 micron
• Blower Assembly : 1 / 3 HP, 1440 RPM
• Noise level : 65 decibel + / -5%
• Rate of air flow : 0. 40 to 0. 75 M / Sec. (90 FPM)
• Vibration level : < 2. 5 micron

Fittings :

• Microprocessor based Control systems and feather touch switches
• RPM regulator / VFD controller
• Magnehelic Gauge / Mano meter and Gas Nipple
• Velocity sensors and Digital display systems
• CFL Lighting and Germicidal (UV) Lamp with Hour meter

Clients :

• Pharma, Biotech, Hospitals, Blood banks, Medical testing Labs, Food and Brew rage Industries, Agricultural Labs, Electronic Industries etc.,
