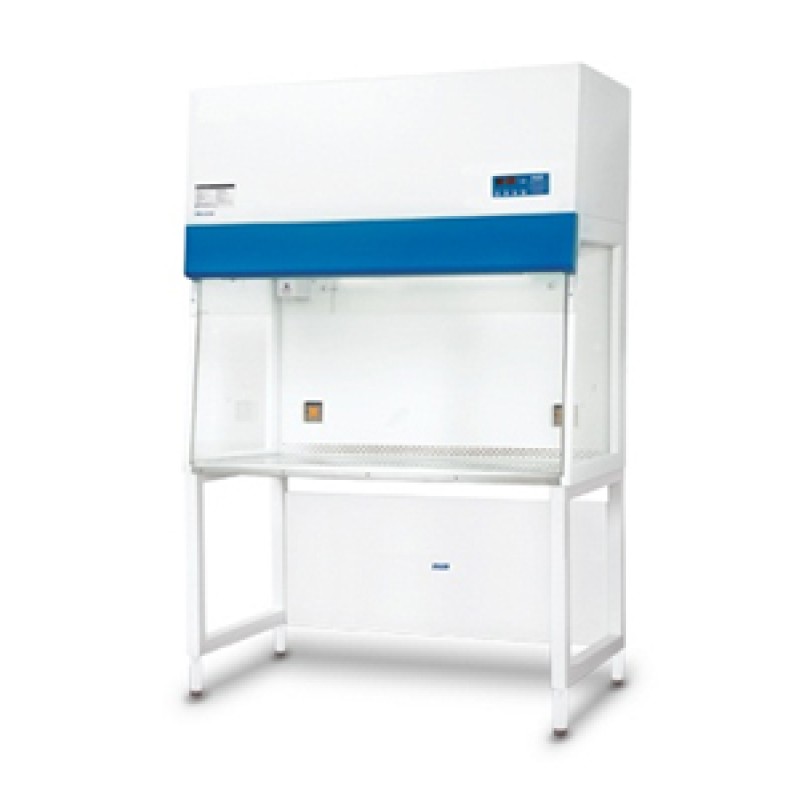

VERTICAL LAMINAR AIR FLOW
Product Details :
Features:
- The outer body is made up of MS Powder coated and working table is made up of Stainless Steel (SS304). All the filters (Pre & HEPA) can be easily changed at site. It is provided with a UV light. The UV light can be changed by any in-house personnel.
- The front & the back sash is made of clear, imported polycarbonate sheet. It moves on wheels making the sliding movement easy.
- Side and front windows: 5mm toughened glass anti-UV is provided.
Air Flow | 90 ± 20 fpm and |
Sound Level | < 60 dB |
Particle count | < or = 0.3 micron |
Body including side panels size (lwh) | 2’.2” x 2’.6” x 7’ in feet Note: Also customized at any size. |
Blower isolator | Same size as outlet of fan export quality Rexene Blower suspended on springs to isolate vibration /noise. |
Blower centrifugal low noise level fans | 1200 cfm @ high static pressure, Powder coated class II construction |
Direct driven Motor | 1 HP ,Standard Motor 0.3 micron HEPA filters |
Filter pressure gauges | 25 mwg. Oil-filled Manometer as static pressure indicator |
Light | 2 UV Lamps of 30 watts Sleek type , With standard fittings |
Power sockets | 5 / 15 Amps ,Anchor or equivalent |
Side Glass | 2’ x 2’ in feet Saint Gobain (4mm) |
Electrical | 220-240V,50Hz Single phase CE & ISO Certified |
VERTICAL LAMINAR AIR FLOW
