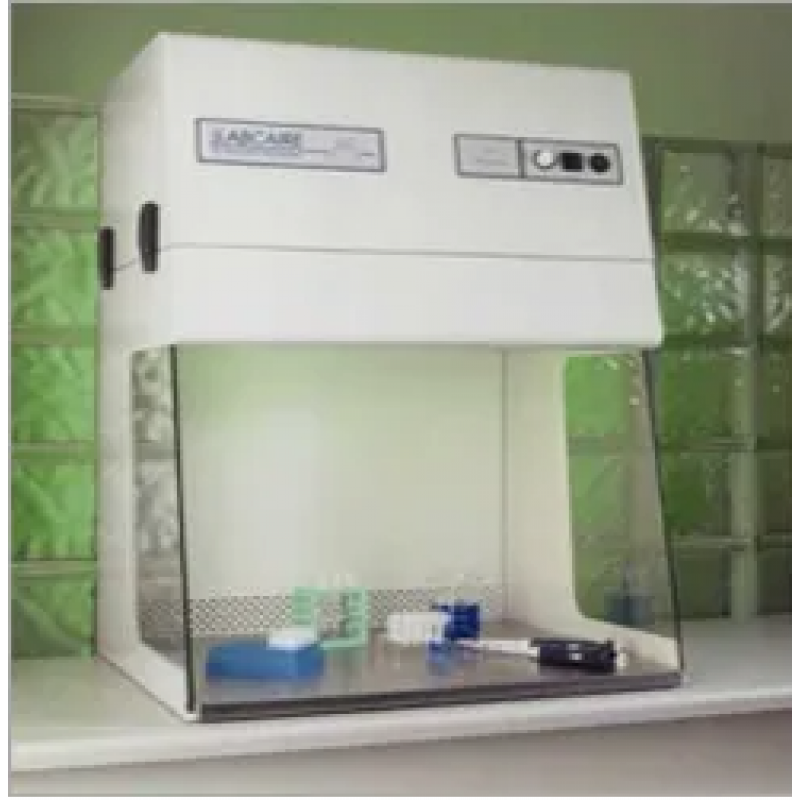

PCR Laminar Air Flow

Product Details :

With thorough scientific knowledge and experience, we are emerged as one of the profound manufacturers and suppliers of PCR Laminar Air Flow cabinets. These easy to maintain cabinets are widely used for pathogenic, biotechnology and microbiological testing lab applications in various Laboratories. Customized as per the requirements of our clients, these PCR Laminar Air Flow cabinets are made by using quality stainless steel and other material.

Features :

• Provide dust free work space
• Compact design
• Suitable to handle low-risk biological and non biological substances

PCR Laminar Air Flow

Laminar air flow, PCR

Bio breeze make Laminar Air Flow cabinets are designed to achieve a Bacterial, Fungal and Air born particle/dust free work space with a Class-100 level of Hygienic condition. We offering Ergonomically designed Laminar air flow PCR work benches, widely used for day to day Polymerization Chine Reactions in Microbiological, Pathogenic and Biotechnology testing lab applications in various Laboratories. According to the Filter life and Energy saving, we having 3 models are

1. Basic Model 2. Standard Model 3. Superior Model

It is need to handle a low-risk Biological / Non Biological substances or materials under a Linier air flow work station to protect the Material handled from environment.

MOC of Construction :

1. Fully SS 304 construction with PVC mat 4 finish

2. GI Powder coating / Painting Constriction with SS 304 working area

Technical Specifications :

• Direction of flow : Vertical
• Cleanliness : CLASS 100
• Velocity : 90 FPM + 20%
• HEPA Filter : 0.3micron with 99.997% efficiency
• Particle retention : Above 0. 3 micron
• Blower Assembly : 1 / 3 HP, 1440 RPM
• Noise level : 65 decibel + / -5%
• Rate of air flow : 0. 40 to 0. 75 M / Sec. (90 FPM)
• Vibration level : < 2. 5 micron

Fittings :

• Microprocessor based Control systems and feather touch switches
• RPM regulator / VFD controller
• Magnehelic Gauge / Mano meter and Gas Nipple
• Velocity sensors and Digital display systems
• CFL Lighting and Germicidal (UV) Lamp with Hour meter

Clients :

• Hospitals, Blood banks, Stem cell banks, Medical testing Labs,
