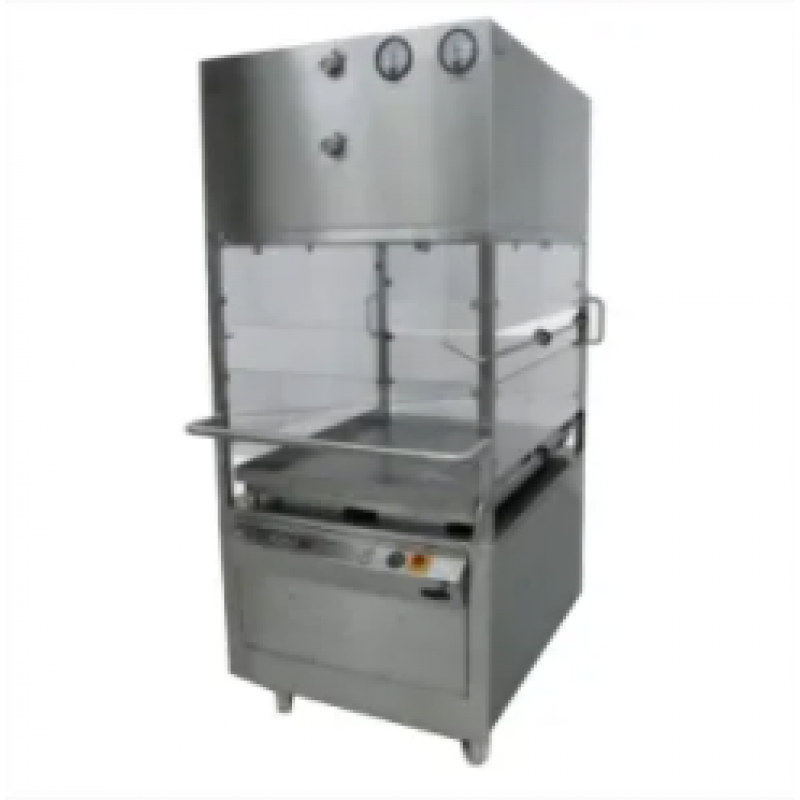

Mobile Laminar Air Flow

Product Details :

Our offered range of Mobile Laminar Air Flow cabinet is thoroughly designed to meet the ever-growing needs of the customers, as per the current industrial norms. These cabinets are manufactured using latest technology and advanced machinery, to ensure high standards of quality. Widely used for sterile storage operations in pharma, microbiological, pathogenic and biotechnology industries, these Mobile Laminar Air Flow cabinets are available in different models as per the requirement of our clients.

Features :

• Energy saving
• Fully SS 304 construction
• Vertical direction of flow

Mobile Laminar Air Flow

Laminar air flow - Mobile

Bio breeze make Laminar Air Flow cabinets are designed to achieve a Bacterial, Fungal and Air born particle/dust free work space with a Class-100 level of Hygienic condition. We offering Ergonomically designed Laminar air flow Mobile work benches, widely used for day to day Sterile storage Operations in Microbiological, Pathogenic, Pharma and Biotechnology Industries Production and Testing Lab applications. According to the Filter life and Energy saving, we having 3 models are ..

1. Basic Model 2. Standard Model 3. Superior Model

It is need to handle a low-risk Biological / Non Biological substances or materials under a Linier air flow work station to protect the Material handled from environment.

MOC of Construction :

1. Fully SS 304 construction with PVC mat 4 finish

2. GI Powder coating / Painting Constriction with SS 304 working area

3. Electrical UPS and Caster wheel with lock system.

Technical Specifications:

• Direction of flow : Vertical
• Cleanliness : CLASS 100
• Velocity : 90 FPM + 20%
• HEPA Filter : 0.3micron with 99.997% efficiency
• Particle retention : Above 0. 3 micron
• Blower Assembly : 1 / 3 HP, 1440 RPM
• Noise level : 65 decibel + / -5%
• Rate of air flow : 0. 40 to 0. 75 M / Sec. (90 FPM)
• Vibration level : < 2. 5 micron

Fittings :

• Microprocessor based Control systems and feather touch switches
• RPM regulator / VFD controller
• Magnehelic Gauge / Mano meter and Gas Nipple
• Velocity sensors and Digital display systems
• CFL Lighting and Germicidal (UV) Lamp with Hour meter

Clients :

• Sterile Storage Operations in Pharma, Biotech, Hospitals, Blood banks, Medical testing Labs, Food and Brew rage Industries, Agricultural Labs, Electronic Industries etc.,
