Laminar Air Flow system

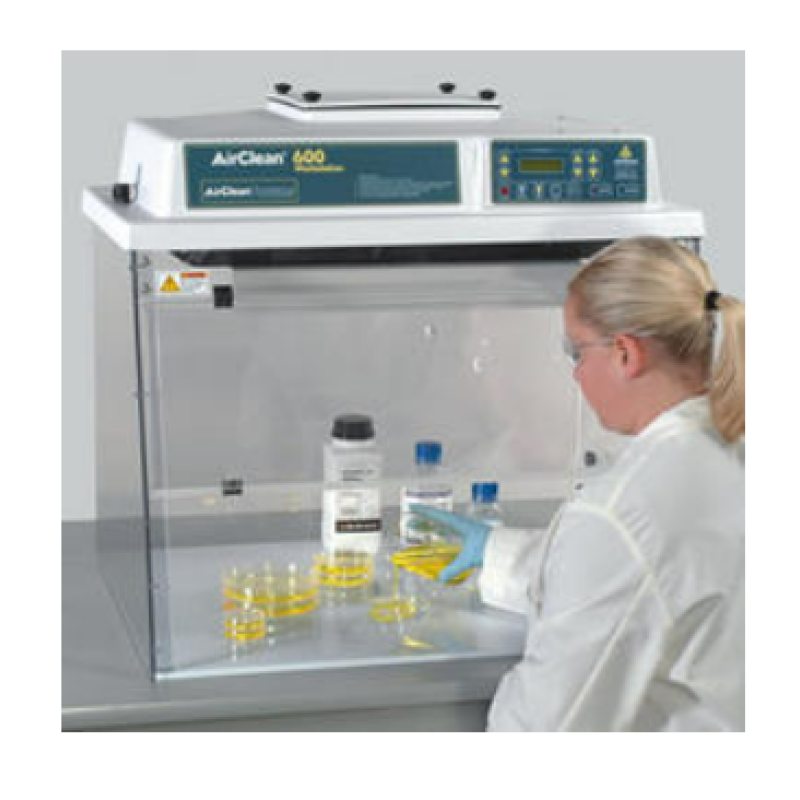

Vertical Laminar Flow Workstation
AirClean® Systems AC600 Series vertical laminar flow workstations are ideal for applications that are not hazardous to the operator but require a clean work area. The compact, light weight design allows for multiple "clean zones" within a laboratory.
The vertical laminar flow workstation provides clean Class 100 laminar flow air for process protection by using a two stage filtration process. Room air is first cleaned with an electrostatically charged prefilter and then further cleaned with a HEPA filter. AirClean Systems vertical laminar flow workstations have been independently certified to meet or exceed applicable clean bench standards.
Features- UVTect™ microprocessor controller
- Class 100 (ISO 5) vertical laminar flow
- 360-degree visibility
- Integral polypropylene base for easy cleaning
- All thermoplastic construction
- Built-in fluorescent light
- HEPA filter monitor automatically indicates when filter change is required
- Available in 24″, 32″ and 48″ widths
- Available in 110 V or 220 V versions
Options- Shortwave UV light
- Custom sturdy cart allows unit to be made portable
- All polypropylene - metal free construction available
- ULPA filter
- Sliphatch access port
Available Sizes
The vertical laminar flow workstation provides clean Class 100 laminar flow air for process protection by using a two stage filtration process. Room air is first cleaned with an electrostatically charged prefilter and then further cleaned with a HEPA filter. AirClean Systems vertical laminar flow workstations have been independently certified to meet or exceed applicable clean bench standards.
Features
- UVTect™ microprocessor controller
- Class 100 (ISO 5) vertical laminar flow
- 360-degree visibility
- Integral polypropylene base for easy cleaning
- All thermoplastic construction
- Built-in fluorescent light
- HEPA filter monitor automatically indicates when filter change is required
- Available in 24″, 32″ and 48″ widths
- Available in 110 V or 220 V versions
- Shortwave UV light
- Custom sturdy cart allows unit to be made portable
- All polypropylene - metal free construction available
- ULPA filter
- Sliphatch access port
VERTICAL LAMINAR FLOW WORKSTATION DIMENSIONS | ||||||
PRODUCT # | EXTERNAL DIMENSIONS | INTERNAL DIMENSIONS | ||||
WIDTH | HEIGHT | DEPTH | WIDTH | HEIGHT | DEPTH | |
AC624LF | 24″ | 30″ | 24″ | 23″ | 18″ | 23″ |
AC632LF | 32″ | 30″ | 24″ | 31″ | 18″ | 23″ |
AC632TLF | 32″ | 39″ | 24″ | 31″ | 27″ | 23″ |
AC648LF | 48″ | 32″ | 24″ | 47″ | 18″ | 23″ |
AC648TLF | 48″ | 40″ | 24″ | 47″ | 29″ |
