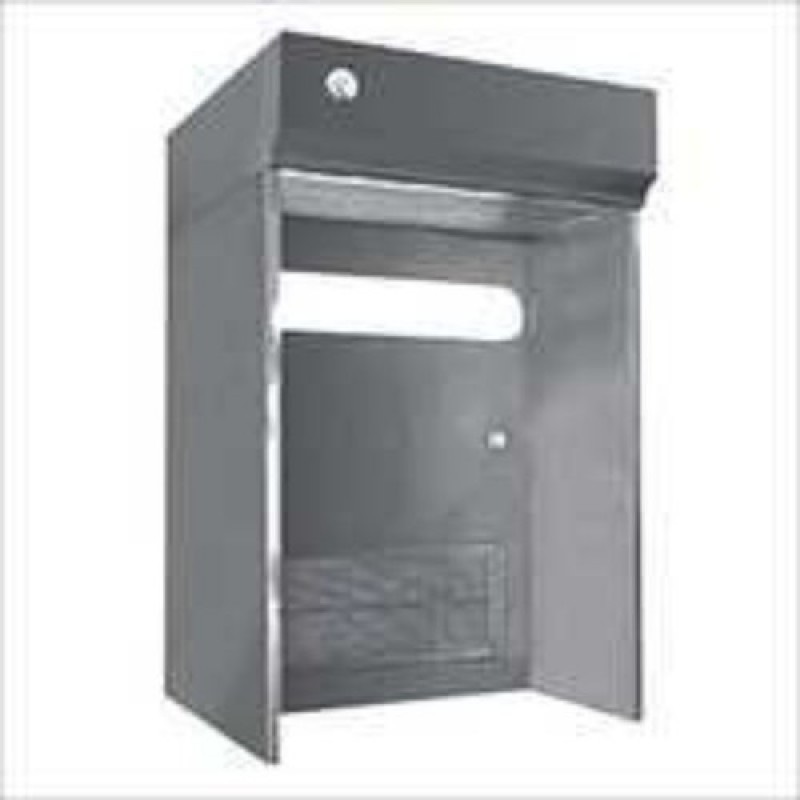

Laminar Air Flow
Product Details :
Material | SS |
Surface Finish | Polished |
Voltage | 230V |
Noise Level | 65 +- 5 DB Measured From Filter Face |
Air Flow | 90 FPM (0.45 m/s) 10 FPM (0.05 m/s) Average Velocity Measured 6 in. (152.4 mm) from the Diffus |
Frequency | 50Hz |
Cabinet Material Grade | SS304 |
Motor Blower Assembly | Direct Drive, Continuous Duty 1/4 HP with Sealed Bearings. Motor Assembly is Mounted |
Size | 3' X 2' X 6' |
Filters | Aluminum framed High efficiency Particulate air (HEPA), with a minimum efficiency of 99.99% at 0 |
Pre Filters | Washable Type Pleated Pre-Filter with 90% Efficiency. EU4 Rating. |
Construction | 18 Gauge |
Plenum | Distribution of Air. Designed in Negative Pressure to Prevent Escape and / or Bypass of HEPA Filter |
Other Details :
It is also knows as Sampling or Dispensing Booth. It is used to control hazardous emissions of powder, dust or vapour during powder dispensing, drum tipping, product sampling, without risk to the operator or environment, and are available in wide modular range of sizes. They are constructed from stainless steel in fully ducted designs.
Main design features:
- The work area is separated from the external environment by the following derices:
- The reverse laminar flow booth is formed by a stainless steel; AISI 304 scotch brite finished self-supporting structure, provided with rounded corners for easy cleaning.
- A negative pressure inside the booth prevents the escape of fine powder from the work area towards the external enviroment.
- A perforated diffuser panel made of stainless steel shields the upper filtration area.
- 5/15 amps electrical points on the panel.
- CFL lighting through diffuser provided on the panel
- Internal height can be adjusted as per requirements. Standard height is 6'/1830 mm.
- Application: Product sampling, large scale dispensing, weighing
Laminar Air Flow
