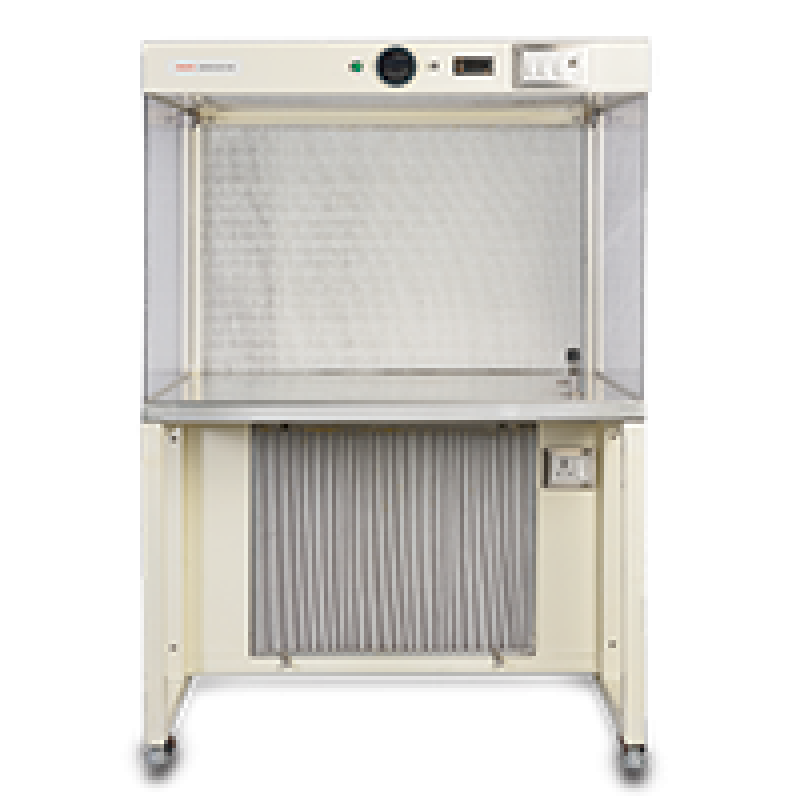

Laminar Air Flow Cabinet
Product Details:
M.O.C: In MS powder coated in REGULAR MODEL
In SS 304 Matt/Buff finish in GMP MODEL
Filter Details:
- Minipleat HEPA Filter - EU-13 rating (99.997% down to 0.3 micron).
- Type of HEPA Filter Media: Make - M/s. Lydall/ M/s. Hollingsworth & Vose Sealant - Polyurethane
- Pre Filter - EU – 5 rating (Eff.: 95% down to 5 micron) at working side.
- Face Velocity - Face Velocity of HEPA is adjustable from 90 ± 20 FPM.
- Air Cleanliness & Filter Efficiency - Dust counts exceeds Class 100 requirements as per ISO-14644 & IEST-RP-CC001.3.
- Motor Blower - Custom built drive type motor with blower which is Dynamically & Statically balanced blower for less vibration & noise level.
Instrumentation & Accessories
- Lights Intensity - U.V Light - 1 No And Diffused Fluorescent Lighting to provide an intensity of 300 Lux White Light Magnehelic Gauge - Digital, Range: 0 to 25 mm (to check Pressure drop across the Hepa filters)
- Electrical Switches - On /Off Switch & indicator for Motor Blower On/Off Switch for Light.
- (220V, Single Phase, 50Hz, Lighting additional power point included 15/5 Amps switch socket combine)
- Documentation:- DQ/IQ/OQ/PQ will be provided at the time of Installation also with MOC Certificate of SS 304 and Filter Test Certificate
- Laminar air free cabinate
REFERENCE – MODEL - HORIZONTAL
CAT NO.
WORKING AREA
SIZE OF FILTER
HEPA FILTER
PRE FILTER
ILLUMINATION WITH UNIT
U. V. LIGHT
CIC - 12 A
2' x 2' x 2'
2' x 2' x 3"
1
1
1 x 20 Watts
1 x 3'
CIC - 12 B
3' x 2' x 2'
3' x 2' x 3"
1
1
2 x 20 Watts
1 x 3
1 x 3'CIC - 12 C
4' x 2' x 2'
4' x 2' x 3"
1
1
2 x 40 Watts
1 x 3'
