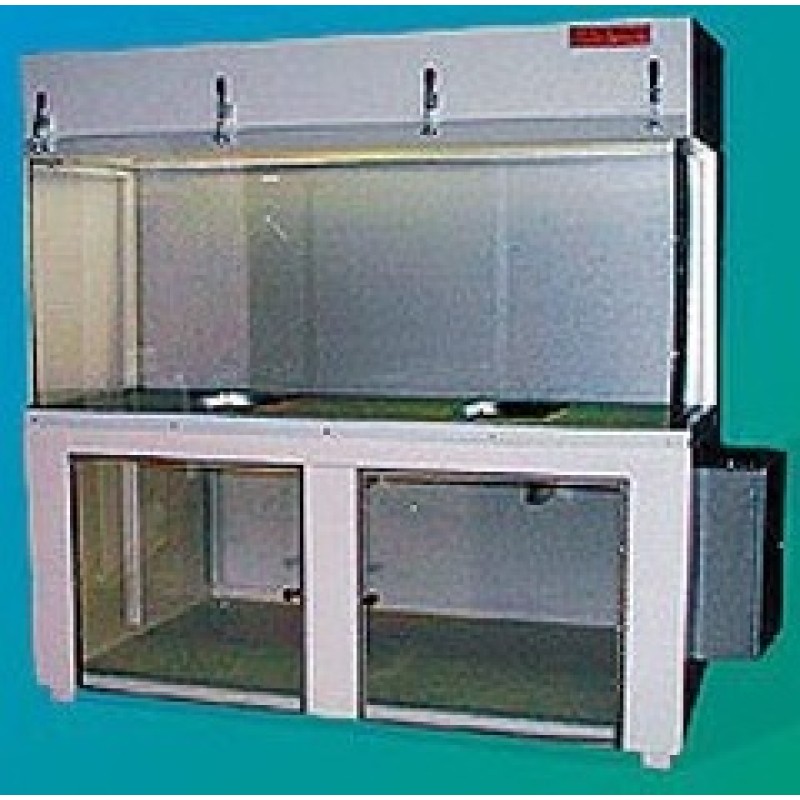

Laminar Air Flow Bench (Horizontal) “ISIC”

 Product Details :

This complete package unit is provided to give clean air to any laboratory. Useful where any hyper critical work has to be performed within minimum contamination as they assure 99.97% removal of air born particles as 0-3 microns in the work area. Ultra clean air moves horizontally in Laminar Flow bench cross the work area at a velocity of approximate 90;  + 20 feet per minute.

Blowers are fitted with 1/4 H.P. Electric Motor operates with minimum noise and vibration. Suitable to operate on 220 Volts 50 Cy. AC supply.

Complete with HEPA filters, Prefilters, Motor Blower, Manometer, Gas Cock, Transparent Acrylic Sheet Front and slide doors.

MODEL   (S. S. Top)

Working    Size of   No. of      Illumination     U.V.

Area    HEPA  Pre-filters  Florescent Tube Tube

HLF-1    2’x 2’x 2’    2 x 2 x 6’    1     2 x 20 W    1 x 15 W

Additional Facilities at an Extra Cost :

• Spare HEPA Filter  2’x 2’ x 2’

• Validation of Laminar Air Flow for Dust Count at Site
• Magnahelic Gauge
