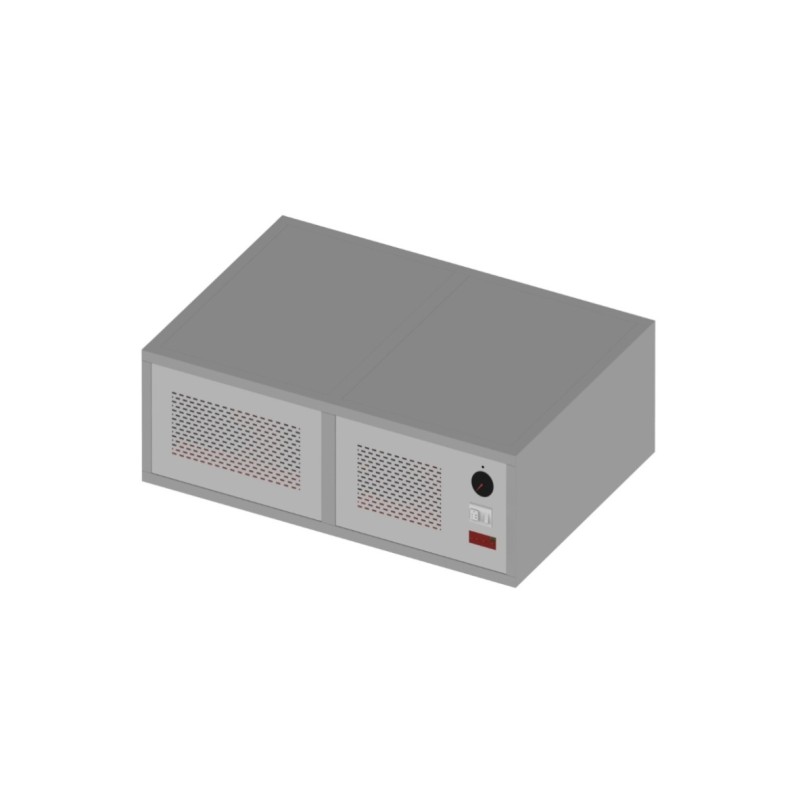

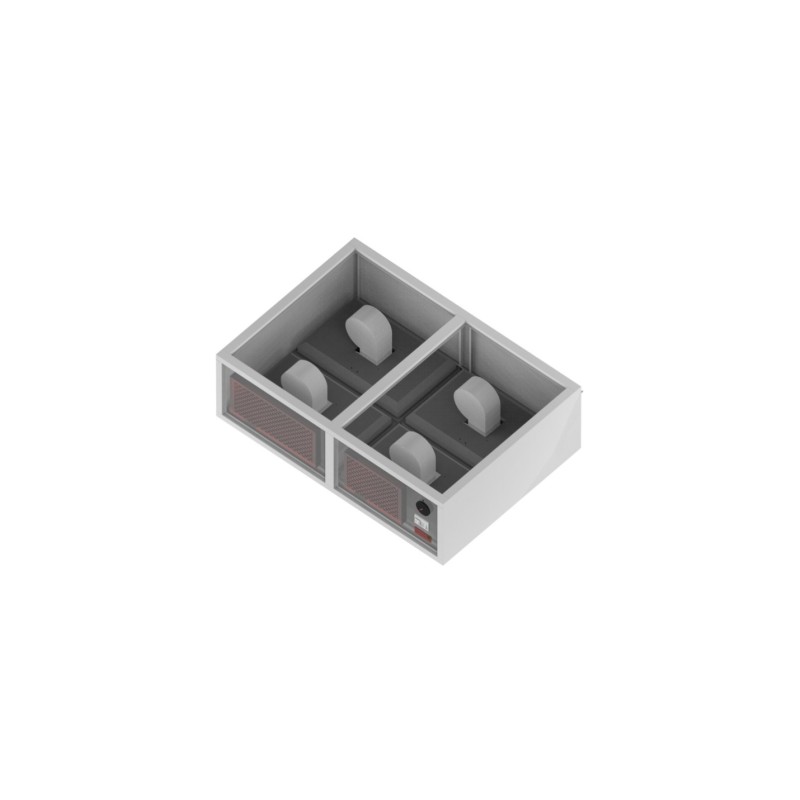

Laminar Flow Cabinets create particle-free working environments by projecting air through a filtration system and exhausting it across a work surface in a laminar or uni-directional air stream. They provide an excellent clean air environment for a number of laboratory requirements.
Uses/Work
Laminar Flow Cabinets are suitable for a variety of applications and especially where an individual clean air environment is required for smaller items, e.g. particle sensitive electronic devices.
Laminar Flow Cabinets can be tailor made to the specific requirements of the laboratory and are also ideal for general lab work, especially in the medical, pharmaceutical, electronic and industrial sectors.
Commonly, the filtration system comprises of a pre-filter and a HEPA filter. The Laminar Flow Cabinet is enclosed on the sides and constant positive air pressure is maintained to prevent the intrusion of contaminated room air.
Specifications:
- Able enough to handle critical process
- Proven protection for the samples and processes
- The work area is continuously supplied with positive pressure HEPA filtered vertical air flow
- Vertical unidirectional airflow peed prevents contamination from operator and environment to work area.
- Laminarity of the flow handles cross contamination between the items in the working space.
- Made available in SS 304 / SS 316/ SS 316L
- Two Stage filtration
- EU5 – Pre filter (95% down to 5 micron).
- EU14 - HEPA Filter – Supply (99.999% down to 0.3 micron).
- Dynamically balanced Motor-blower provided with spring suspension arrangement to minimize the noise level.
- Fluorescent Lights.
- Differential Pressure Gauge: 1 No.
- On / Off Switch.
- DOP Test Port.
- 5/15 Amp Switch Socket for external equipment.
- Atmospheric Nozzle.
Accessories Made Available (As per Requirement):
- Velocity display with alarms (audible and visible).
- Explosion proof electrics for Flame-proof applications.
- Audio / Visual alarm for blower tripping with Fault Acknowledgement.
- Photogenic Gauge / Magnehelic Gauge.
- Front Anti-Static PVC Curtains.
LAMINAR AIR FLOW SYSTEM
- Views: 437
-
Brinda Pharma technologies Pvt Ltd - Vendor Type: Manufacturer
- Product Code: BPT0000018
- Availability: In Stock
- ₹0
Seller information
Brinda Pharma Technologies PVT.
- Brinda Pharma Technologies PVT. LTD.
- Ahmedabad, India
- Business Type :Manufacturer
