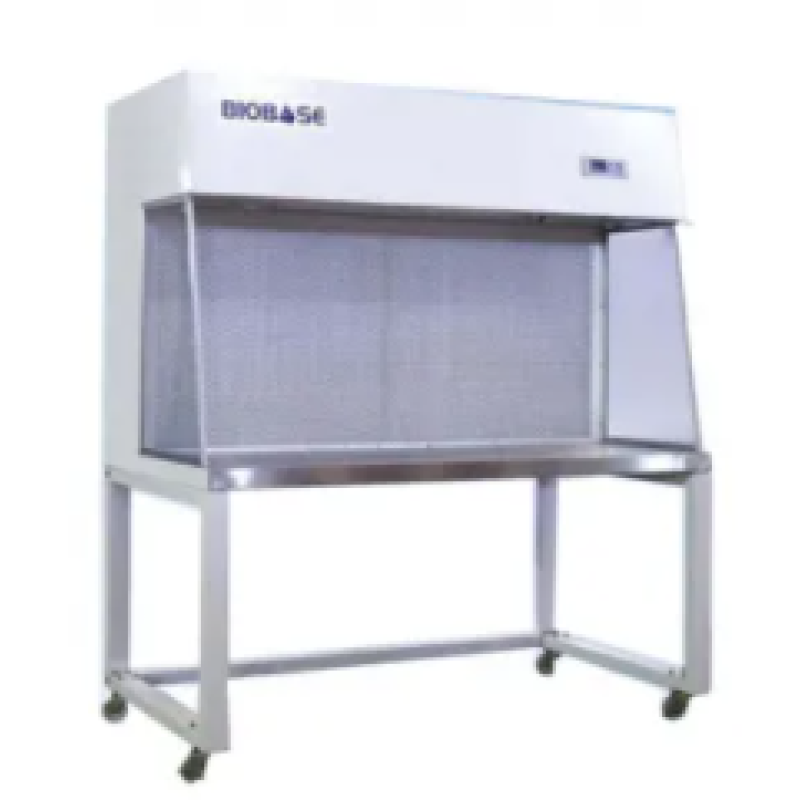

Horizontal Laminar Flow Bench

Product Details :

We are reckoned as one of the prominent manufacturers and suppliers of an excellent quality Horizontal Laminar Flow Bench in the market. These benches extensively used for day to day biotechnology, microbiological, pathogenic testing lab applications in various laboratories. Provides a fungal, bacterial, air born particle and dust free work space, this Horizontal Laminar Flow Bench is available in different models including basic model, standard model and superior model.

Features :

• GI Powder coating
• Low noise and vibration level
• Ergonomically designed

Laminar air flow - Horizontal

Bio breeze make Laminar Air Flow cabinets are designed to achieve a Bacterial, Fungal and Air born particle/dust free work space with a Class-100 level of Hygienic condition. We offering Ergonomically designed Laminar air flow Horizontal work benches are widely used for day to day Microbiological, Pathogenic and Biotechnology testing lab applications in various Laboratories. According to the Filter life and Energy saving these LAF are having 3 different models are

1. Basic Model 2. Standard Model 3. Superior Model

It is need to handle a low-risk Biological / Non Biological substances or materials under a Linier air flow work station to protect the Material handled from environment.

MOC of Construction :

1. Fully SS 304 construction with PVC mat 4 finish

2. GI Powder coating / Painting Constriction with SS 304 working area

Technical Specifications :

• Direction of flow : Horizontal
• Cleanliness : CLASS 100
• Velocity : 90 FPM + 20%
• HEPA Filter : 0.3micron with 99.997% efficiency
• Particle retention : Above 0. 3 micron
• Blower Assembly : 1 / 3 HP, 1440 RPM
• Noise level : 65 decibel + / -5%
• Rate of air flow : 0. 40 to 0. 75 M / Sec. (90 FPM)
• Vibration level : < 2. 5 micron

Fittings :

• Microprocessor based Control systems and feather touch switches
• RPM regulator / VFD controller
• Magnehelic Gauge / Mano meter and Gas Nipple
• Velocity sensors and Digital display systems
• CFL Lighting and Germicidal (UV) Lamp with Hour meter

Clients :

• Pharma, Biotech, Hospitals, Blood banks, Medical testing Labs, Food and Brew rage Industries, Agricultural Labs, Electronic Industries etc.,
