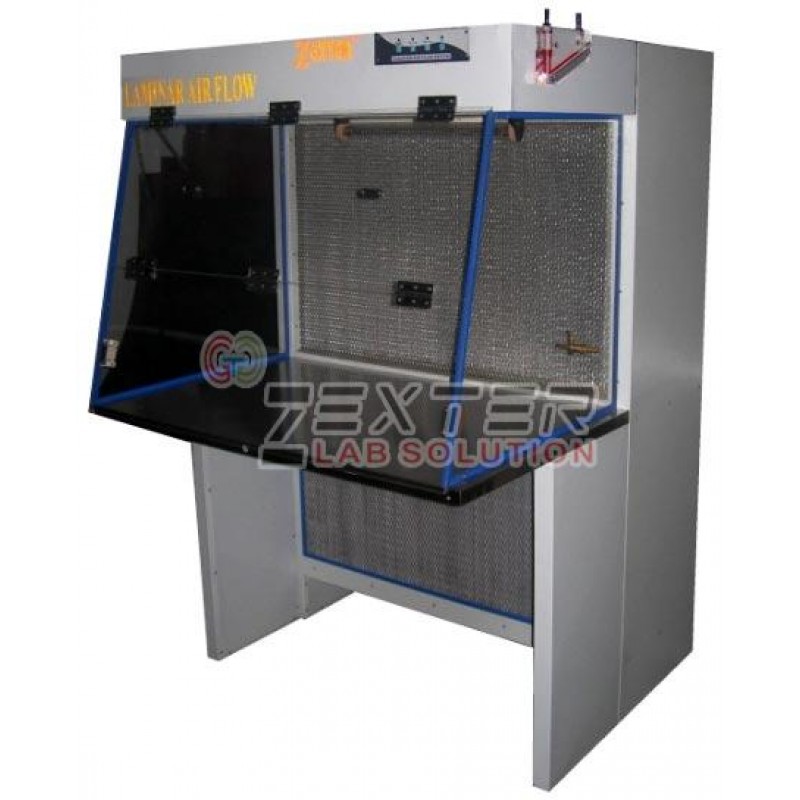

Horizontal Laminar Air Flow Bench

Specifications :

Horizontal Laminar Air Flow Bench is complete package unit provided to give clean air to any laboratory. Horizontal Laminar Air Flow Bench is useful where any hypercritical work has to be performed within minimum contamination as they assure 99.97% removal of airborne particles as 0-3 microns in the work area. The basic elements of Horizontal Laminar Air Flow Bench are pre-filters, heavy-duty blower assembly; HEPA (high Efficiency particular Air) filter (Absolute filter) fresh air is drawn through the pre-filter and passes to absolute HEPA filter. Ultra clean air moves horizontally in Laminar flow bench cross the work area at a velocity of approximate 90; ± 20 feet per minute.

Construction :

• Basic material is Duro board wood/M.S/S.S front back top and exterior surfaces are covered with laminated mica/M.S/S.S.
• All interior surfaces are epoxy painted/M.S/S.S. filter seat is carefully formed, installed and checked for leakage.
• Worktable is made of Mica top and side panels are made of 6 mm thick glass transparent framed in anodized Aluminum angle frame.
• Blowers are fitted with 1/4 H.P. Electric Motor operates with minimum noise and vibration. Suitable to operate on 220 Volts 50 Cy. AC supply. Complete with HEPA Filters, Prefilters, Motor Blower, Manometer, Gas Cock, Transparent Acrylic Sheet Front and Side Doors.

Specifications :
