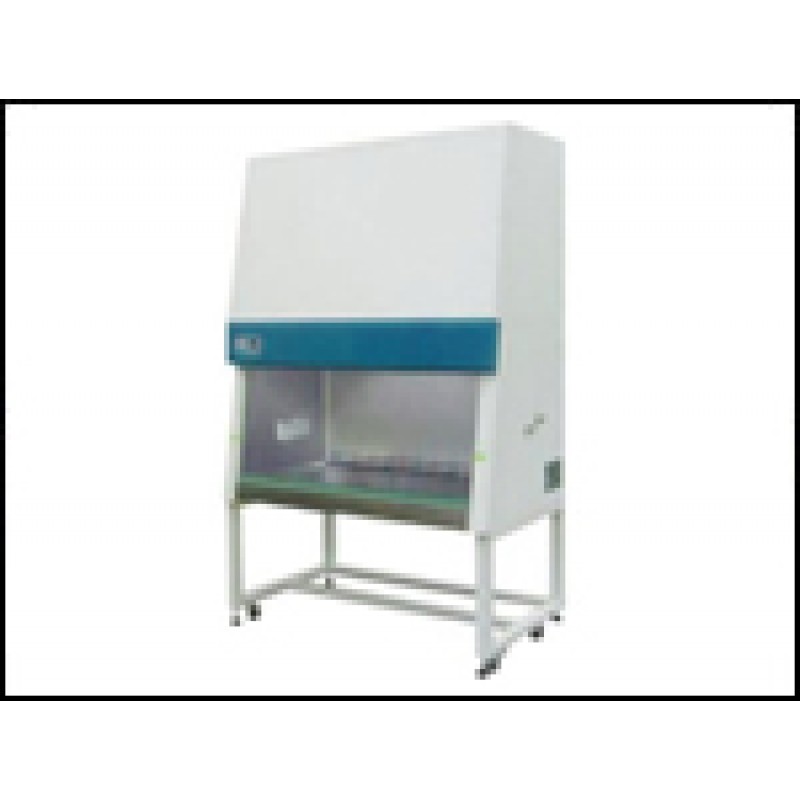

Bio-Safety Cabinet class II
Product Details :
Working Area | 3’ x 2’ x 2’ | 4’ x 2’x 2’ |
Construction | CRCA Steel
sheet 16G (powder coated). | |
Filtration I | Pre-filter non
woven pleated (5 micron particles). | |
Filtration II | HEPA filter
0.3micron at an efficiency of 99.97% | |
Motor Blower | ¾ HP motor
with aluminium curved impeller. | |
S.S. Work Table | 5mm
perforation at 10mm pitch on front and rear edges. | |
Work Surface | SS with
perforation at 5”along the front and rear edges. | |
Manometer | differential
pressure between the Hepa plenum and the atmosphere. | |
Lighting | fluorescent
lamps and U.V lamps with guard for eye protection |
Special features:
- Flame umbrella made in S.S with gas cock & electric sockets at sides.
- Powder coated steel construction mounted on castor wheels with lock for mobility with Stability
- Protects the product and the user with zero contamination risk.
- Vertical laminar airflow with air intake across access opening.
- 20% air exhausted, via HEPA filter, 80% re-circulated into the sterile area.
- Negative pressure in all areas which are subject to contamination risk ensures, that even if a leak should occur in the sealing system, all particles will be returned to the pressure chamber and will be absorbed by the air circulation and the exhaust air filter.
- Special exhaust system: to throw the contaminated air in the atmosphere safely.
- Provides a comfortable sit down working position with foot rest.
- STAINLESS STEEL perforated grill to the hepa filter gives good protection.
- Full sliding clear polycarbonate door with adjustable heights.
- Single piece HEPA FILTER ensures against dead air space inside the working area.
Optional:
- Exhaust ducting with suitable fittings per running feet.
- Virus burn out unit: ensures total destruction of pathogens Present in air being exhausted from the cabinet.
