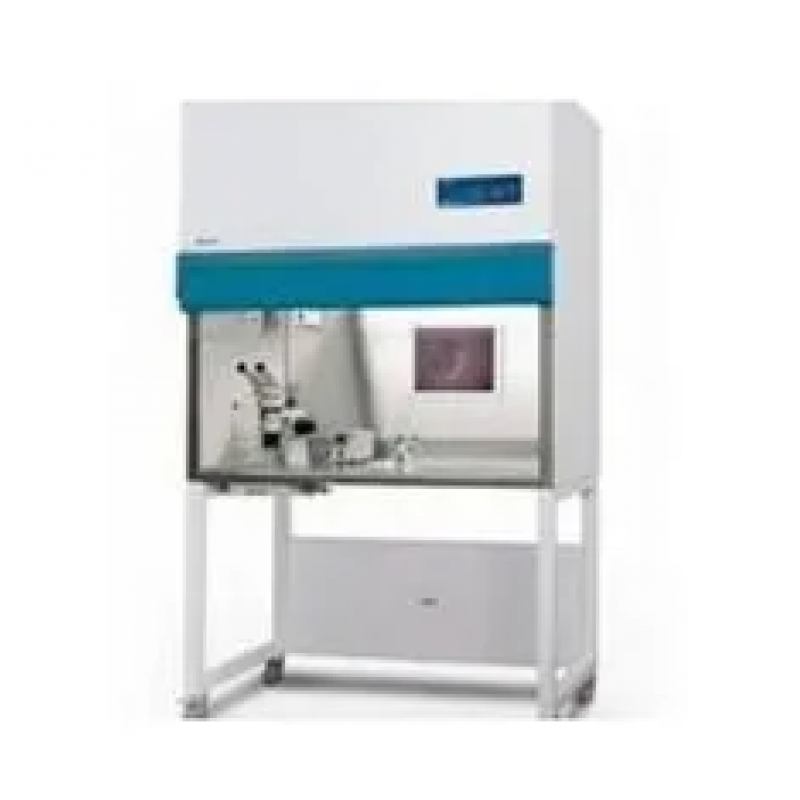

IVF Laminar Air Flow
Product Details :
We are instrumental in supplying our clients a excellent quality assortment of IVF Laminar Air Flow that is manufactured as per the well-defined parameters of the industry. Known for providing a bacterial, fungal and air born particle or dust free work space, these cabinets are highly demanded for stem cell, cell culture and biotechnology testing lab applications in diverse laboratories. Clients can avail this IVF Laminar Air Flow from us in various models at affordable prices.
Features :
- GI Powder coating
- Ensure Class-100 level cleanliness
- Feather touch switches
IVF Laminar Air Flow
Laminar air flow - IVF
Bio breeze make Laminar Air Flow cabinets are designed to achieve a Bacterial, Fungal and Air born particle/dust free work space with a Class-100 level of Hygienic condition. We offering Ergonomically designed Laminar air flow IVF work benches are widely used for Cell culture, Stem cell, Biotechnology testing lab applications in various Laboratories. According to the Filter life and Energy saving, we having 3 models are..
1. Basic Model 2. Standard Model 3. Superior Model
It is need to handle a low-risk Biological / Non Biological substances or materials under a Linier air flow work station to protect the Material handled from environment.
MOC of Construction :
1. Fully SS 304 construction with PVC mat 4 finish
2. GI Powder coating / Painting Constriction with SS 304 working area
Technical Specifications :
- Direction of flow : Vertical
- Cleanliness : CLASS 100
- Velocity : 90 FPM + 20%
- HEPA Filter : 0.3micron with 99.997% efficiency
- Particle retention : Above 0. 3 micron
- Temperature : Filament heater attached below the work table
- Blower Assembly : 1 / 3 HP, 1440 RPM
- Noise level : 65 decibel + / -5%
- Rate of air flow : 0. 40 to 0. 75 M / Sec. (90 FPM)
- Vibration level : < 2. 5 micron
Fittings:
- Microprocessor based Control systems and feather touch switches
- RPM regulator / VFD controller
- Magnehelic Gauge / Mano meter and Gas Nipple
- Velocity sensors and Digital display systems
- CFL Lighting and Germicidal (UV) Lamp with Hour meter
Clients :
- Pharma, Biotech, Hospitals, Blood banks, Medical testing Labs, Food and Brew rage Industries, Agricultural Labs, Electronic Industries etc.,
