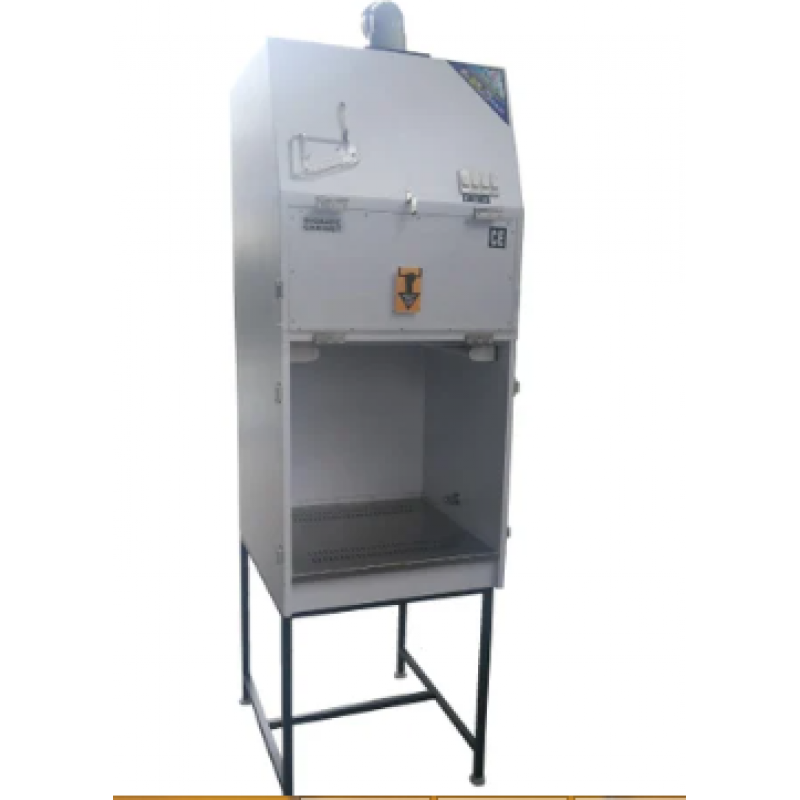

Laminar Air Flow Vertical Wooden
Product Details:
Switches : Switches for blower,Flourescent light & UV ligh.
Pre–filter : 99.00% down to 5micron.
HEPA Filter : ISO 14644 Class 5 (Class 100) 99.97%-99.99% down to 0.3 micron. Mesh guard for protection of HEPA filter.
Airflow : Top to downward.
Noise Level : 60 decibel ± 5%.
Velocity : 0.35-0.50m/sec.
Work Table : Made up of Perforated Stainless Steel 304gr. Cock for gas on work table.
Front door : Made of acrylic.
UV Lamp : 15/30W, make Philips Holland.
Illumination : 20/40W, Flourescent tube with diffuser.
Pressure : Manometer-0-50mm range.
Power Supply : 230V ± 10V/50Hz single phase A.C.
Cabinet : Made of 19mm thick plyboard covered with white sunmica & epoxy painted from inside.
Heavy Duty Blower : Dynamically balanced with 0.25HP Electric motor mounted on anti vibration pad 1440rpm motor.
RH-57-01 Working Area Size 60x60x60cm.
RH-57-02 Working Area Size 90x60x60cm.
RH-57-03 Working Area Size 120x60x60cm.
RH-57-04 Working Area Size 180x60x60cm.
