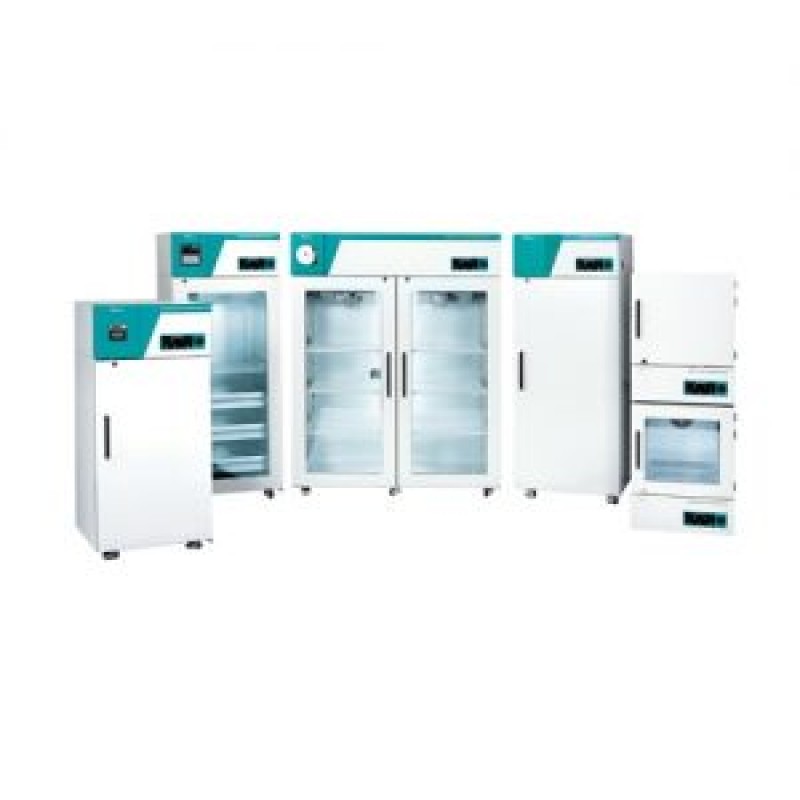

Laboratory Refrigerators
Product Features :
- Ideal for research and industrial laboratories
- Your laboratory space is efficiently managed with our various different size models
Performance
- Fully insulated chamber ensuring minimal chamber’s temperature fluctuation
- High thermal efficiency evaporation system, made of low corrosive materials
- Optimizing defrost systems
- Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator for CLG-150, 300, 650, 850
- None defrost system needed for 1400 due to its dual refrigerating system
Convenience
- Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons
- Easy temperature unit conversion between ℃and ℉
- Clear observation of stored samples
- Tempered glass door with built in heating wire (for the models with glass doors only)
- Energy efficiency, long life span LED lighting (except for CLG-150)
- High-quality 304 grade stainless steel interior
- Efficient internal space use with height adjustable wire shelves
- Built-in 50mm diameter cable port for external probes or wires (except for CLG-150)
- Dedicated stand with casters for CLG-150 for use in labs with limited space (optional)
- Three types of recorders to choose from (optional)
– Dot recorder (6 point)
– Chart recorder (6”, 24hr/7days)
– Thermal line recorder
Safety
- High/low temperature protection, Over current protection
- Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss
- Keypad lock function, Built in door lock with a keya
Product Description :
Model | CLG-150 | CLG-300 | CLG-650 | CLG-850 | CLG-1400 | ||
Chamber volume (L / cu ft) | 156 / 5.5 | 303 / 10.7 | 603 / 21.3 | 805 / 28.4 | 1327 / 46.9 | ||
Temperature range (℃ / ℉) | 2 to 10 / 35.6 to 50 | ||||||
Refrigerator (Hp) | 230V, 50/60Hz | 1/6 | 1/6 | 1/4 | 1/3 | 1/4×2ea | |
No. of wire shelf(standard / max.) | 2 / 6 | 3 / 11 | 3 / 17 | 3 / 17 | 6 / 34 | ||
No. of wire shelf, slide(max., optional) | 4 | 7 | 11 | 11 | 22 | ||
No. of drawer shelf, slide (max., optional) | 3 | 5 | 8 | 8 | 16 | ||
Max. load per shelf(kg / Ibs) | 26 / 57.3 | 30 / 66.1 | |||||
Material | Interior | Stainless steel #304 | |||||
Exterior | Steel,1 mm, powder coating | ||||||
Insulation | 60mm, Polyurethane foam | ||||||
Dimension (W×D×H) | Interior (mm / inch) | 550×580×490/21.7×22.8×19.3 | 550x550x1000/21.7×21.7×39.4 | 650x640x1450/25.6×25.2×57.1 | 750x740x1450/29.5×29.1×57.1 | 1430x640x1450/56.3×25.2×57.1 | |
Exterior(mm / inch) | 683×791×870/26.9×31.1×34.4 | 670x770x1515/26.4×30.3×59.6 | 770x865x1965/30.3×34.1×77.4 | 870x965x1965/34.3×37.9×77.4 | 1550x865x1965/61×34.1×77.4 | ||
Net weight (kg/Ibs) | 100/220.4 | 130/286.6 | 210/463 | 260/573.2 | 350/771.6 | ||
Electrical requirements (230V, 50Hz) | 2A | 2.3 A | 4A | 4.2A | 6A | ||
Cat. No. | Solid door type | AAHE1002K | AAHE1012K | AAHE1022K | AAHE1032K | AAHE1042K | |
Glass door type | AAHE1102K | AAHE1112K | AAHE1122K | AAHE1132K | AAHE1142K |
