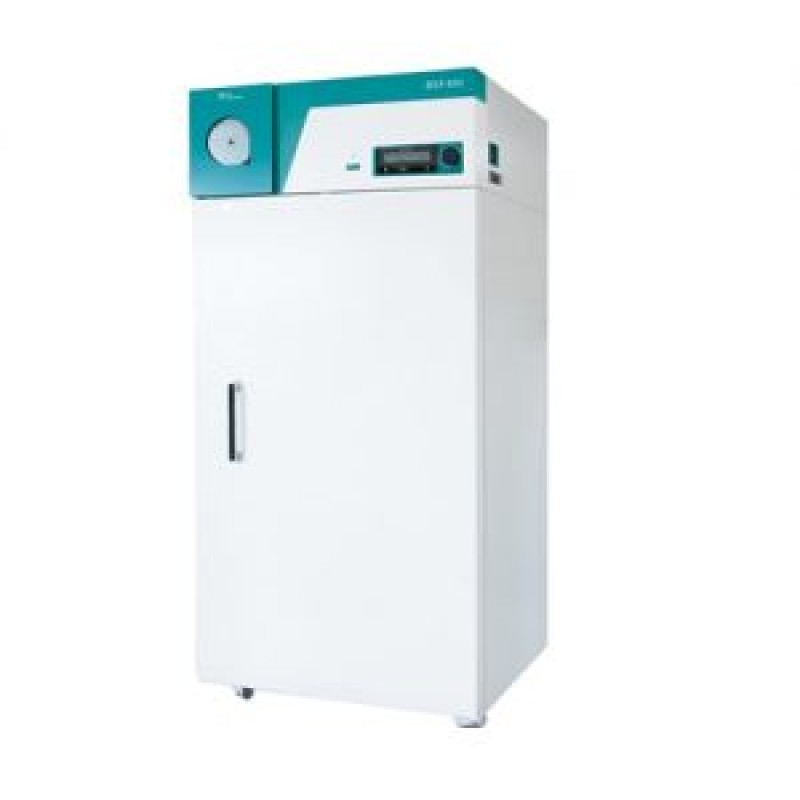

Plasma Freezers
Product Features:
- The most suitable environments for sensitive plasma freezing
- Wide temperature range down to -40°C and high advanced safety functions satisfying the high medical standards (ISO13485 / DIN 58375)
Performance
- Fully insulated chamber ensuring minimal chamber’s temperature fluctuation
- High thermal efficiency evaporation system, made of low corrosive materials
- Auto-defrost system for automatic frost removal and manual defrost system for immediate frost removal
Convenience
- Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons
- Easy temperature unit conversion between ℃ and ℉
- Air-tight door seal and lockable door latch enhances tightness to door closure
- High-quality 304 grade stainless steel interior
- Easy to store samples with smooth full-extension sliding drawers
- Precise documentation is available by the provided chart type recorder
Safety
- Dual temperature controllers for safe blood storage
- If one controller fails to adjust temperature, then the other automatically activates to counteract the failure
- Battery backup for emergency caused by power failures
- Built in auto-dialing remote alarm to alert abnormal temperature changes or power failures
- High/low temperature protection, Over current protection
- Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss
- Keypad lock function, Built in door lock with a key
Product Description :
Model | BSF-300 | BSF-650 | |
Chamber volume (L / cu ft) | 303/ 10.7 | 647/ 22.8 | |
Temperature range (℃ / ℉) | -40 to -25 / -40 to -13 | ||
Refrigerator (Hp) | 1 | 1-1/2 | |
No. of drawer shelf, slide (standard / max.) | 4 / 4 | 6 / 6 | |
Max. load per shelf (kg / Ibs) | 26 / 57.3 | 30 / 66.1 | |
Material | Interior | Stainless steel #304 | |
Exterior | Steel, 1 mm, powder coating | ||
Insulation | 100mm, Polyurethane foam | ||
Dimension (W×D×H) | Interior (mm / inch) | 550x550x1000 / 21.7×21.7×39.4 | 700x675x1370 / 27.6×26.6×53.9 |
Exterior (mm / inch) | 765x760x1650 / 30.1×29.9×64.9 | 915x885x2020 / 36×34.8×79.5 | |
Net weight (kg / lbs) | 150 / 331 | 240 / 529 | |
Electrical requirements (230V) | 50Hz, 5.5A | 50Hz, 7.5A | |
Cat. No. | AAHE5102K | AAHE5112K |
