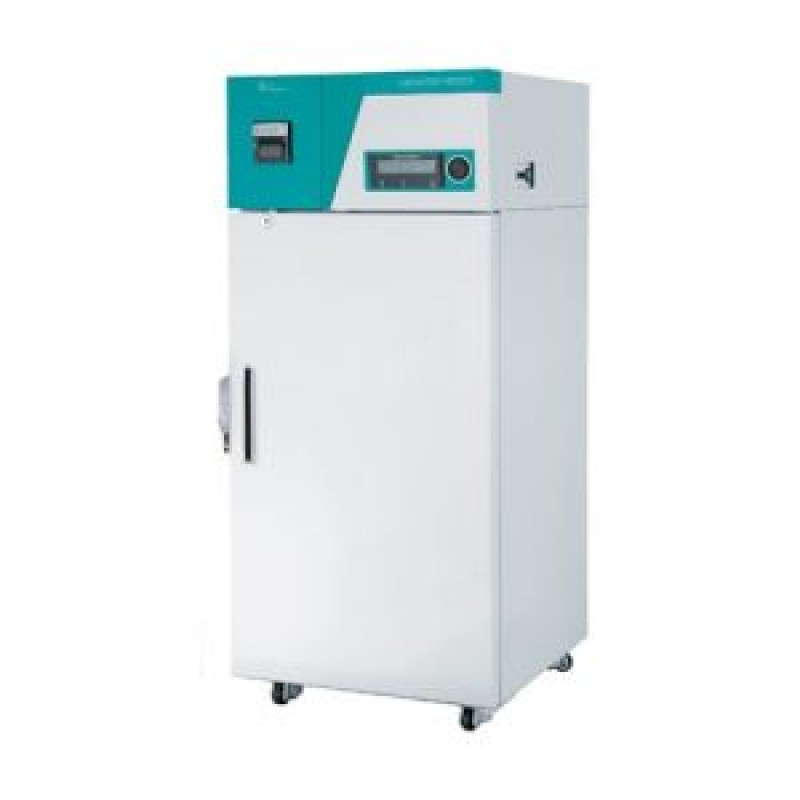

Laboratory Freezers (FDG Models)
Product Features:
A variety of freezer models for subzero degree storage of your sensitive lab material with innovative defrost system
Performance
- Excellent freezing control down to minimum -50°C
- Fully insulated chamber ensuring minimal chamber’s temperature fluctuation
- High thermal efficiency evaporation system, made of low corrosive materials
- Dual defrost systems
- Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator
- Additional manual defrost system for immediate frost removal
Convenience
- Four-temperature different freezing models cover various storage application
- Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons
- Easy temperature unit conversion between ℃ and ℉
- Air-tight door seal and lockable door latch enhances tightness to door closure
- High-quality 304 grade stainless steel interior
- Efficient internal space use with height adjustable wire shelves
- Three types of recorders to choose from (optional)
- Dot recorder (6 point)
- Chart recorder (6”, 24hr/7days)
- Thermal line recorder
Safety
- High/ low temperature protection, Over current protection
- Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss
- Keypad lock function, Built in door lock with a key
Product Description :
For temperature range from -50℃ to -35℃
Model | FDG-300 | FDG-650 | |
Chamber volume (L / cu ft) | 303 / 10.7 | 647 / 22.8 | |
Temperature range (℃ / ℉) | -50 to -35 / -58 to -31 | ||
Refrigerator (Hp) | 1/3 x 2 | 1/2 x 2 | |
No. of wire shelf(standard / max.) | 3 / 11 | 3 / 17 | |
No. of drawer shelf, slide (max., optional) | 5 | 8 | |
Max. load per shelf (kg / Ibs) | 26 / 57.3 | 30 / 66.1 | |
Material | Interior / Exterior | Stainless steel #304 / Steel, 1 mm, powder coating | |
Insulation | 120mm, Polyurethane foam | ||
Dimension (W×D×H) | Interior (mm / inch) | 550x550x1000 / 21.7×21.7×39.4 | 700x675x1370 / 27.6×26.6×53.9 |
Exterior (mm / inch) | 805x800x1690 / 31.7×31.5×66.5 | 955x925x2060 / 37.6×36.4×81.1 | |
Net weight (kg / lbs) | 180 / 396.8 | 280 / 617.3 | |
Electrical requirements (230V, 50Hz) | 5.0A | 6.5A | |
Cat. No. | AAHE2412K | AAHE2422K |
