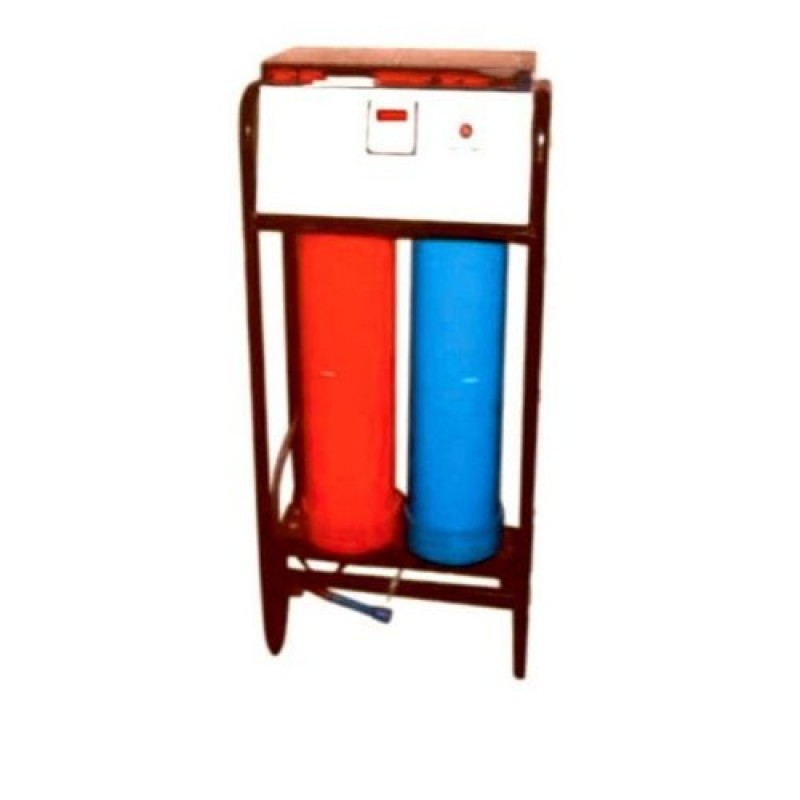

Laboratory Deionizer

Product Details :

We are offering an extensive series of Laboratory Deionizer. These products are extremely employed in the market for diverse purposes.

Specification:

• Water is one of the most abundant natural elements. It is also one of the most contaminated ones. A number of minerals dissolve into water. They have to be removed from the raw water before it can be used for any industrial application.
• A demineraliser removes these minerals from the raw water by an ion- exchange process. This process first exchanges the cations of the salts for the hydrogen ions and, then exchanges the anions of the salts for the hydroxy ions. Water demineralisers employ the modern on- exchange technology to give you chemically pure water.
• In these days Softening of Water is almost exclusively effected by Ion Exchangers. In this process the calcium and magnesium ions are exchanged by sodium ions, so that the hardness forming components are converted into sodium sodium salts. Softening is carried out by simple filtration through the exchange material.
• When the exchange material is exhausted, it requires regeneration. The calcium and magnesium ions which were taken up before are then displaced by sodium ions and flow out together with the regeneration water. The capacities between regeneration and quality of treated water will however vary according to the raw water.

Available in following variant:

• DOUBLE BED UNIT (CA)
• DOUBLE STAGE DOUBLE BED UNIT
• DOUBLE BED MIXED BED UNIT
• MIXED BED UNIT (MB)
• FOUR BED UNIT (FB)

Deionizer consists of an in - built prefilter and very high exchanging capacity non - corrosive CATION and ANION resin columns prefilled with RESINS for efficient results having treated water parameter conforming to IS-1069 / 64. It yields chemically pure water equal to multiple distilled water having a conductivity of less than 10 micro-siemens /cm and pH of 7.5 to 9 pH. Fitted with a sturdy PVC multi - control valve and can be connected direct to water taps. Fitted with digital conductivity meter. Supplied with one plastic chemical proof regeneration tank. Complete unit in housed in a painted M.S trolley for easy mobility.

Features:

• Unique digital conductivity meter fitted with unit.
• In-built pre filter.
• Upflow Treatment.
• Can be connected direct to water tap.
• Treated water will have the conductivity less than 10 ms/cm and pH of 7.5 -9.
• Non Corrosive Regeneration Tank.
• High capacity Cation & Anion exchange resins.
• Easy portable - metal stand and trolley.
• Simple periodic regeneration - negligible operating costs.
• Four Bed Deionizer: It consists of 4 beds i.e. pre-filter, Activated Carbon Cation, Anion Column.
• Consists of Inbuilt prefil, Cation and Anion Resin Columns, Conductivity meter operators on AC/DC (9V Battery Cell). Demonized water will have conductivity of less than 10ms/cm and PH of 7.5 to 8.5

Model No. FB 70 FB 100 FB 150 FB 200 FB 300 FB 500

Output/Hour 70 100 150 200 300 500

Mixed Bed De-Mineralizer: Confirm to ISI 100/60:

Model No. SB 70 SB 100 MB 150 MB 200 MB 300 MB 500

Output/Hour 70 100 150 200 300 500

Additional Information :

• Delivery Time: 15-20 days
• Packaging Details: Wooden Packing
