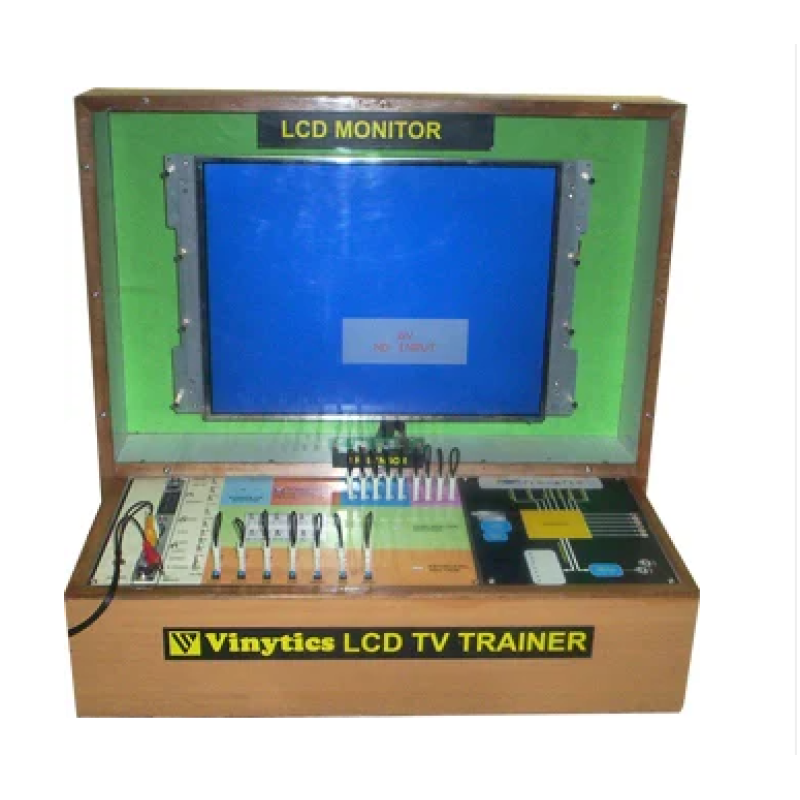

LCD TV Trainer
Product Details:
The complete circuit of Remote LCD T.V. is printed on single PCB.
Micro switch for faults creation.
Section wise different coloured screen printed circuit on the PCB for easy understanding of functions of different sections.
Explanation, Observation, Alignment and adjustment of internal and External controls is possible at a glance due to single PCB.
Easy identification of different parts of Remote LCD TV at a glance.
Easy measurement of Voltages and observation of waveforms at any point. Also typical voltages and waveforms are provided.
The whole circuit of Remote LCD TV is explained section wise in detail in the manual.
SPECIFICATIONS
LCD TV Parts be assembled in modular blocks on panel displaying
Construction of each module, screen aspect 15 inches
Video input, confirming to Indian TV standards. Interfaceable to computer and antenna / set-top box of commercial DTH services providers, like any one out of TATASKY / DISHTV / BIGTV / AIRTEL Digital TV,
On board ports like VGA/PC Input, AV Out, Ear Phone etc.
Switchable faults observation for educational training,
Power supply 220V AC
± Tolerance standard,
Enclosed in an attractive wooden cabinet.
Operation / instruction manual with suitable accessories.
