Kaplan Turbine Test Rig

Generator/Alternator Type

digital tachometer tanks

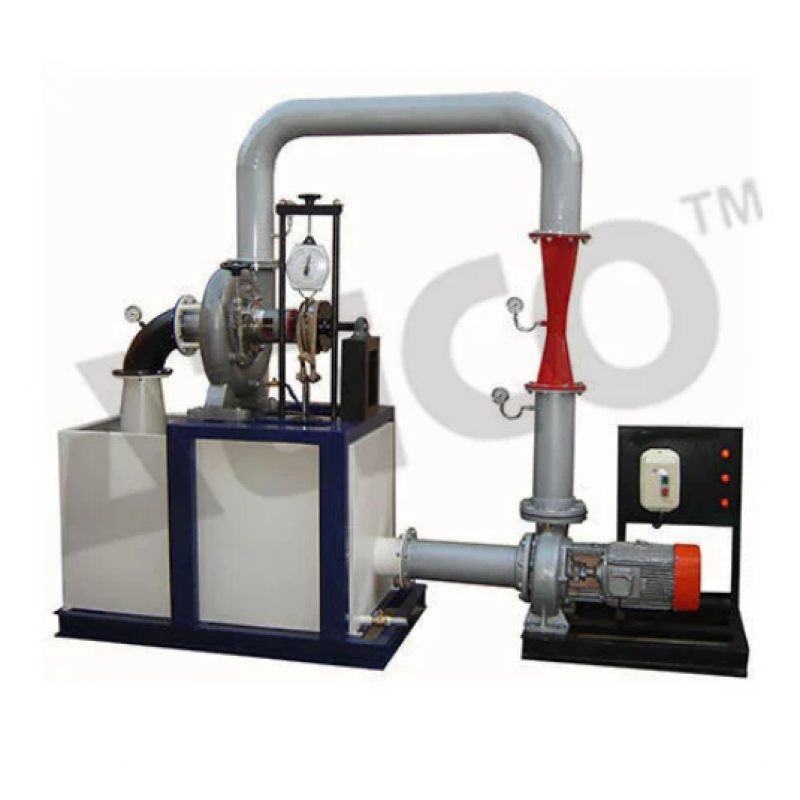

The present set-up consists of a scroll casing housing a runner. Water enters the turbine Through the stationary guide vanes and passes through the runner axially. The runner has a hub and airfoil vanes, which are mounted on it. The water is fed to the turbine by means of centrifugal pump. The runner is directly mounted on one end of a central ss shaft and other end is connected to a brake arrangement. A transparent hollow cylinder made of acrylic is fitted in between the draft tube and the casing for observation of flow. Load is applied to the turbine with the help of rope brake arrangement so that the efficiency of the turbine can be calculated. The set-up is supplied with control panel. A draft tube is fitted on the outlet of the turbine. The set-up is complete with guide mechanism. pressure and vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine.



Experiments:

ø to study the operation of kaplan turbine.

ø to determine the output power of kaplan turbine.

ø to determine the turbine efficiency



Utilities required:

ø electricity 3 kw, 220v ac, single phase

ø floor area 1. 5 x 0. 75 m

ø tachometer



Technical details:

model mod-3 mod-2 mod-1

output power 3 hp 2 hp 1 hp

discharge 5000 lpm (approx. ) 4000 lpm (approx. ) 3500 lpm (approx. )

supply head 8 m 6 m 5 m

rope brake type

dynamometer

dia 300 mm. Dia 200 mm. Dia 200 mm.

sump tank capacity 600 ltrs. Capacity 460 ltrs. Capacity 400 ltrs.

water circulation centrifugal

Pump

capacity 15 hp three phase.

capacity 10 hp three phase.

capacity 7. 5 hp three phase.

speed 1500 rpm (approx. )

runner with adjustable curved vanes

discharge measurement pitot tube with manometer.

control panel starter, mains indicator

with digital tachometer tanks will be made of stainless steel
