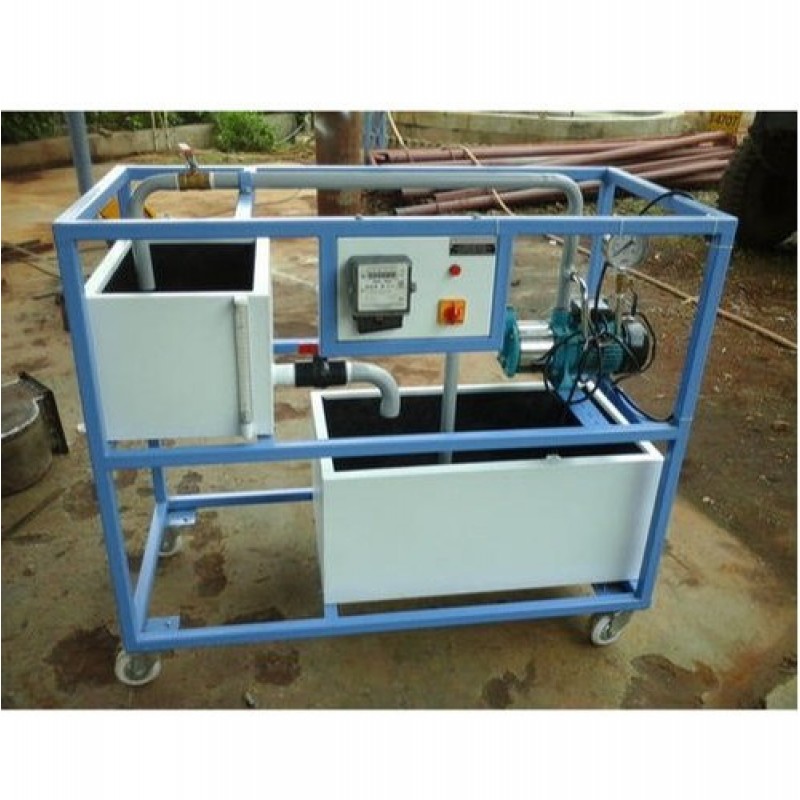

Jet Pump Test Rig

Product Details:

Country of Origin	Made in India
Water Flow	Clear Water
Pressure Gauge	Bourdon Type
Vacuum Gauge	Bourdon Type
brand name	saini
model number	SSIFMHL-014
- Pump	Mono-block jet type, capacity 1 HP.
- Sump tank	800 x 500 x 400 mm size , Capacity 160 liters approx. (stainless steel material )
- Measuring tank	400 x 500 x 400 mm size, Capacity 80 liters approx, Fitted with Piezo-meter Tube scale.(stainless
- Medium flow	Clear water
- Gauge	one piece pressure gauge
- Stop watch	Electronic type
- Pressure gauge	Bourdon type , range 0-2 kg/cm2
- Tank material	(stainless steel material )
- Pipe fitting	GI pipe.

SAINI SCIENCE INDUSTRIES manufacture of Jet pump test rig.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Jet pump test rig. The present Jet Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a monoblock Jet Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
