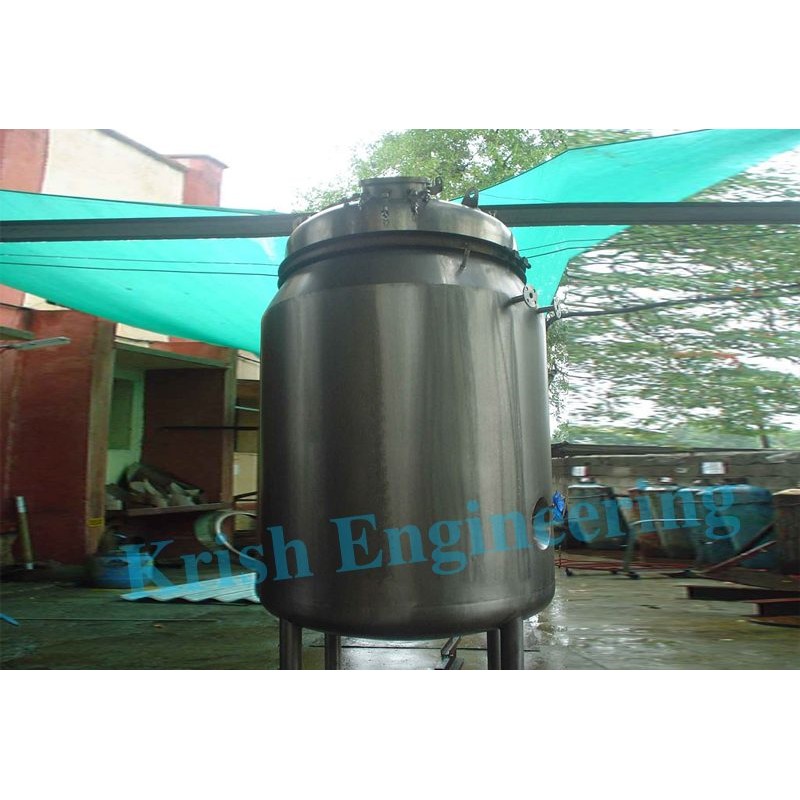

Jackted mixing tank

Description

• Karadani Engineering Offering You Jacketed Mixing tank Is leak proof nature, high temperature resistance and low maintenance. We offer these vessels at a reasonable price
• Wide range of volumes From 500ltr – 80,000ltr
• Construction Material grade Isstainless steel SS316 , SS316L , SS304 , SS304L our Jacketed Mixing Tank are regarded for their attributes like

Product Specification

• We have made the agitated Mixing tank as a standard apparatus in the chemical industry and its basic work is for mixing processes and for chemical reactions in the liquid phase. The vessel can be easily operated in batch mode with temperature going up to 150*C To 500 C Depending on the requests of the process the agitated vessel consists of unalloyed or alloyed steel .
• Mixing Tank consist of a Cylindrical vertical shell with standard Tori spherical/ Ellipsoidal dish on both ends. A Jacket is provided on the Outside of the shell for Heating & Cooling Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel
• Agitator assembly mounted on the Top dish of Mixing Tank consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Shaft Can fitted with different types Of Agitator Such as Single Anchor, Double Anchor, Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement

Application Industries

• – Pharmaceuticals Industry
• – Petrochemical Industry
• – Chemical Industry
• – Oil Refineries
