Jacketed Pipe Sections - Glass Jackets
Prodyct Details:
For heating of piping and for controlling the temperature throughout the column the jacketed pipe sections are provided. Glass jacket is sealed to the pipe section using Viton ‘O’ ring and other sealing compositions. The seal prevents impermissibly high stresses between two tubes and allows the movement, which comes due to thermal expansion. Maximum operating pressure in the jacket :
DN 80 – DN 150      1.0 bar
DN 225 – DN 300    0.5 bar

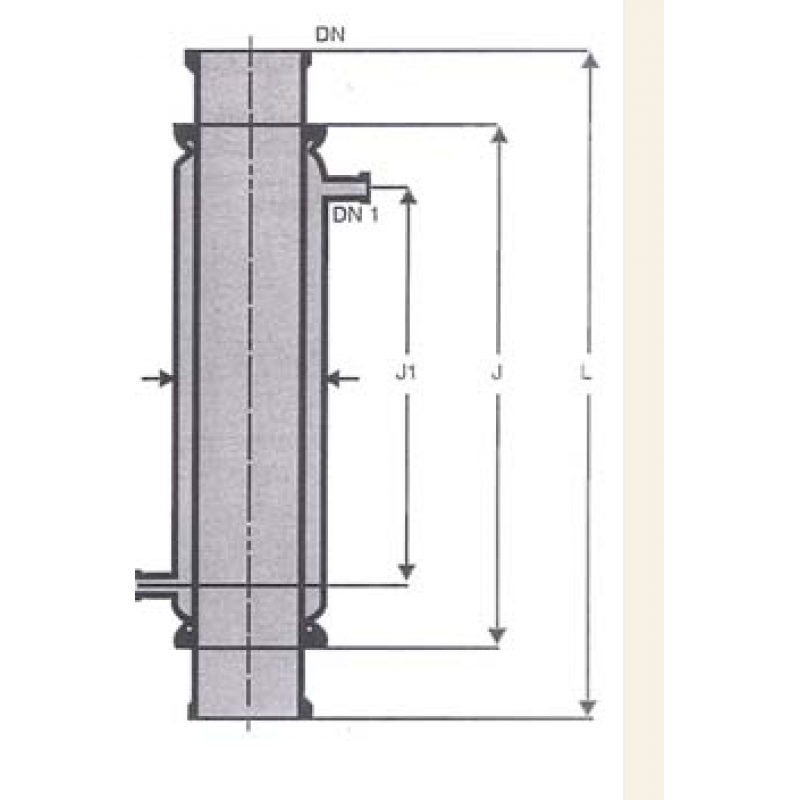

Cat. Ref.	DN	L	d	DN1	J	J1
PSD3/1000	80	1000	100	25	850	750
PSD4/1000	100	1000	150	25	850	750
PSD6/1000*	150	1000	225	25	850	750
PSD9/1000	225	1000	300	25	850	750
PSD12/1000	300	1000	400	25	850	650
