Interacting And Non Interacting System

The set up is designed to study dynamic response of single and multi capacity processes when connected in interacting and non-interacting mode. It is combined to study.

• Single capacity process,
• Non-interacting process and
• Interacting process.

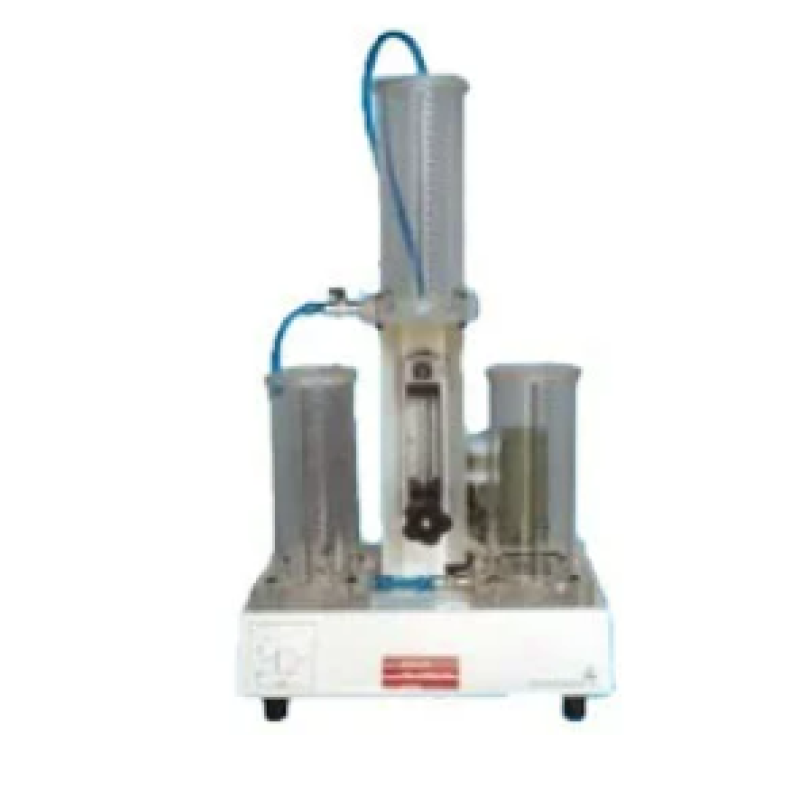

The observed step response of the tank level in different mode can be compared with mathematically predicted response. Setup consists of supply tank, pump for water circulation, rotameter for flow measurement, transparent tanks with graduated scales, which can be connected, in interacting and non-interacting mode. The components are assembled on frame to form tabletop mounting.

Features:

• Closed loop water circulation
• Compact set up
• MS Excel sample calculation
• Combined

Range of experiments:

• Step response of single capacity system
• Step response of first order systems arranged in non- interacting mode
• Impulse response of first order systems arranged in non-interacting mode
• Step response of first order systems arranged in interacting mode
• Impulse response of first order systems arranged in non- interacting mode

Specifications:

Product	Interacting and Non interacting system
Process Tank	Acrylic cylindrical tanks Inside Diameter 92mm with graduated scale in mm. Diameter 92mm With graduated scale in mm.
Supply tank	SS
Rotameter	Range 10–100 LPH
Pump	FHP Vertical
Overall dimensions	410Wx350Dx705H mm

Utilitiesrequired:

• Electric supply
• Provide 230 /- 10 VAC, 50 HZ, Single phase electric supply with proper earthing (Neutral Earth Voltage Less Than 5 VAC.)
• Provide 5A, three-pin socket with switch
• Water supply: Distilled water @10 liters
• Support table Size: 800Wx800Dx750H in mm
