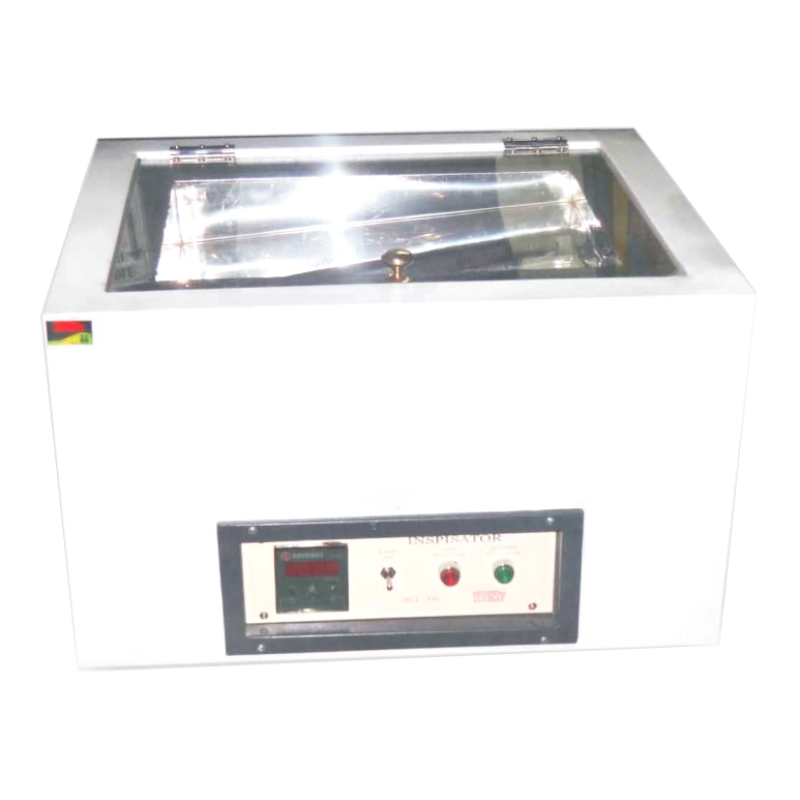

Inspisator
APPLICATIONS OF INSPISATOR

• Double Walled. provided with Jacket for sterilizing the media.
• Double Walled Inspisator is used in Hospitals & Nursing Home.


SALIENT FEATURES & CONSTRUCTION OF INSPISATOR

• Inner Tank made of Stainless Steel (SS-304 grade).
• Outer chamber is made of Mild Steel duly powder coated.

• Provided with jacket for sterilizing the media.
• Transparent Glass / Acrylic cover to see the samples.

• Tapered shelf for proper placement of sampling tubes.
• Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.

• Fitted with drain plug for easy cleaning.
• Heating by immersion heaters.

• Temperature range up to 700C.
• Operating Voltage: 220 Volts AC (50 Hz)```

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF INSPISATOR

Model No.	INS 1	INS 2	INS 3
Internal Dimensions (L X W X D)	450x 175x 50mm	450 x 350 x 50mm	600 x 350 x 50mm
Tubes Capacity	25	50	100
Heating Load	1.5 KW	2.0 KW	2.5 KW
Temperature	Controlled by microprocessor based digital temperature indicator cum controller
Temperature Range	From ambient to 70°C
Temperature Accuracy	± 1°C.
