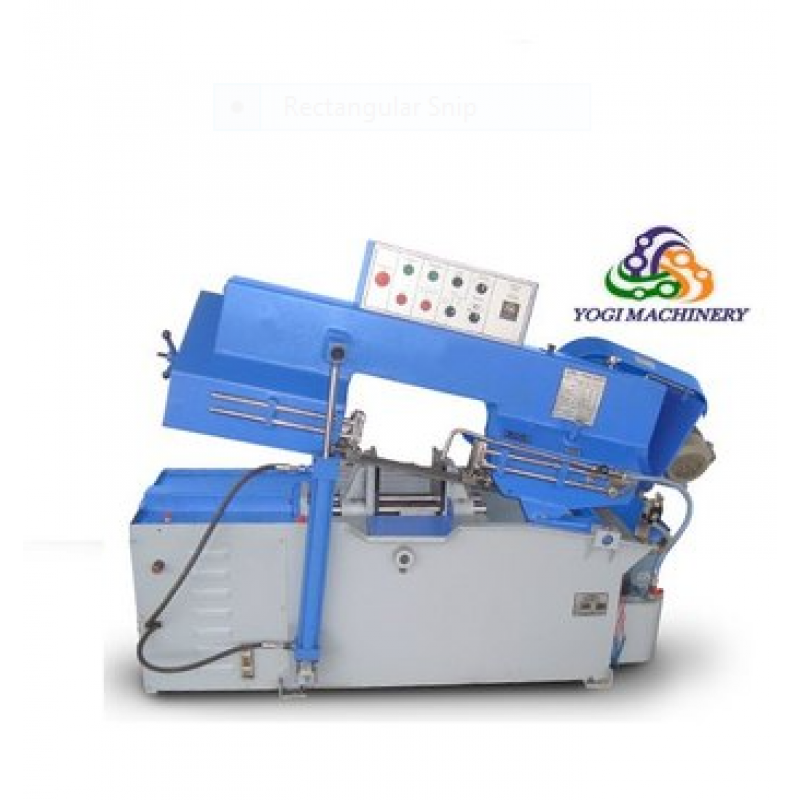

Horizontal Band Saw Machine
Product Details:

Minimum Order Quantity	1 Piece
Usage/Application	Industrial
Size/Dimension	1930x736x1016 mm
Model Name/Number	YM-200
Length Of Saw Blade	3000 mm
Capacity	200 mm
Brand	YOGI
Feeding of Job:	Manual
Clamping Declamping of Job:	Manual
Upifting of Arm:	Manual

Feeding of Job: Manual Clamping Declamping of Job: Manual Upifting of Arm: Manual Feeding of the job, clamping-declamping & lifting of the swiveling arm after job cutting is done manually. Swiveling arm works on gravitational force for cutting operation. The controlling of the arm cutting is done with the help of hydraulic jumper & spring. Rotating the knob on hydraulic jumper to get required feed of the arm coming down. Get the required speed of the blade by adjusting v-belt depending upon the material to be cut.

Additional Information:

• Production Capacity: 30/Week
• Delivery Time: Available In Ready Stock
