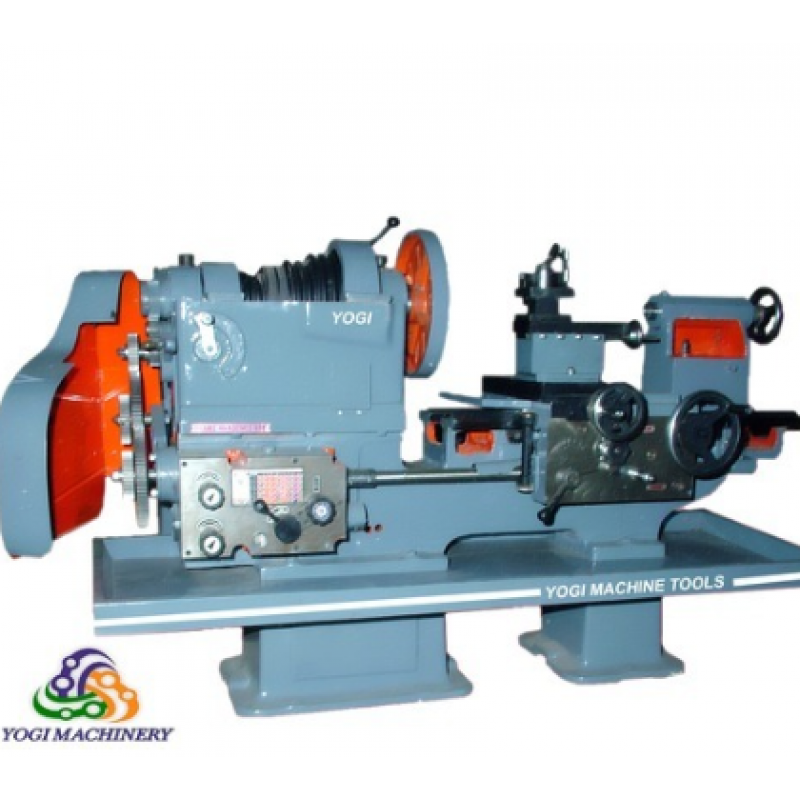

Heavy Duty Lathe Machine
Product Details:
Minimum Order Quantity | 1 Piece |
Type | Horizontal Lathe |
Power Source | Electric |
Height of Centre | 250 mm OR 300 mm |
Automation Type | Automatic |
Brand/Make | YOGI |
Model | YHD |
Spindle Bore | 52 mm | 80 mm | 104 mm | 127 mm |
Size | 5.5 Feet | 7 Feet | 9 Feet | 10 Feet | 12 Feet |
Admit Between Centre | 500 mm | 1000 mm | 1600 mm |1900 mm| 2500 mm |
Features:
- Robust construction
- High durability
- Superior performance
- Longer service life.
Technical Specifications:
Model | YHD – 5 | YHD – 7 | YHD – 9 | YHD – 10 | YHD – 12 |
Bed Length | 1675 mm | 2134 mm | 2743 mm | 3048 mm | 3658 mm |
Bed Width | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
Height of Center | 254 mm | 254 mm | 254 mm | 254 mm | 254 mm |
Swing Over Bed | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm |
Swing Over Cross Slide | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
Admit Between Center | 550 mm | 1000 mm | 1600 mm | 1900 mm | 2500 mm |
Spindle Bore | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
RPM Min/Max | 25/450 | 25/450 | 25/450 | 25/450 | 25/450 |
