PRODUCT OVERVIEW

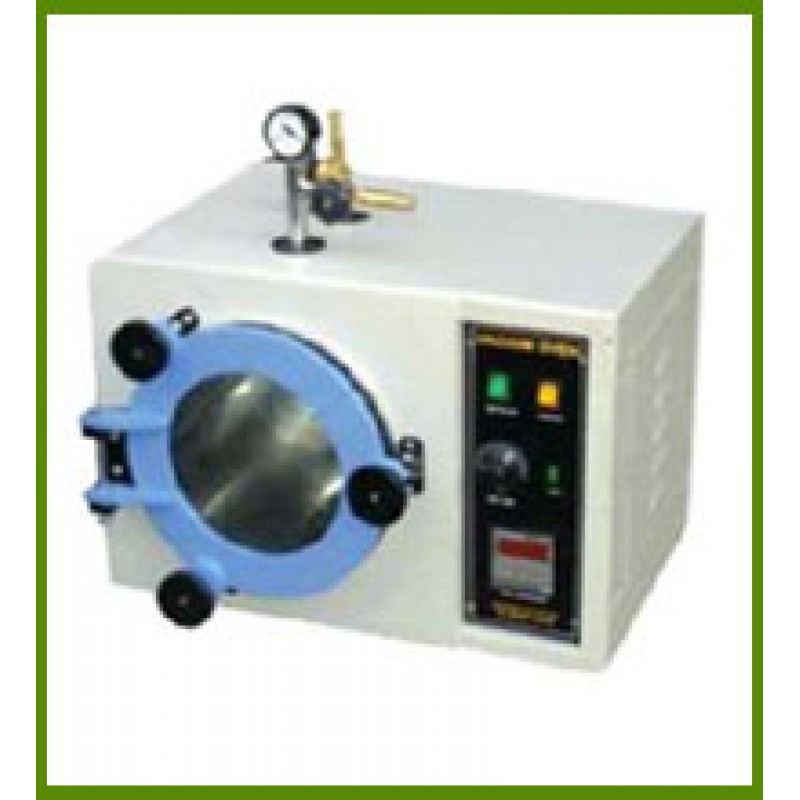

- It is a highly versatile, compact oven with a large useful working area, it can be operated at atmospheric or reduced pressure by using reduced pressure, and the oven enables heat sensitive materials to be dried at low temperature.
- Alternatively more stable samples may be dried more rapidly at higher temperature, without fan circulation. Construction: The external case is tough stoved epoxy based powder coated steel,to with stand the most demanding working conditions.
- The vacuum chamber is made of thick joint less 304 grade stainless steel sheet provided with one shelf, which carries a mercury in glass thermometer which can be viewed through the 150mm wide window by large area heaters strapped to its outer surface.
- Glass fiber insulation maintains safe, low outer case temperatures. The chamber is closed by a 6mm thick toughened glass plate seating on to a silicone rubber gasket. The door closures are screw threaded catches which ensure an excellent vacuum tight seating. Vacuum Controls: Reliable inlet & exhaust valve is fitted.
- These are situated near the front corner of the oven for convenient connection to a vacuum pump, vapor trap or exhaust. A vacuum gauge is fitted showing vacuum pulled from 0 to 760 mm Digital temperature controller is fixed to control temperature from ambient to 250ºC with in ±1ºC.
