ZONOTECH B.O.D. COOLING INCUBATOR

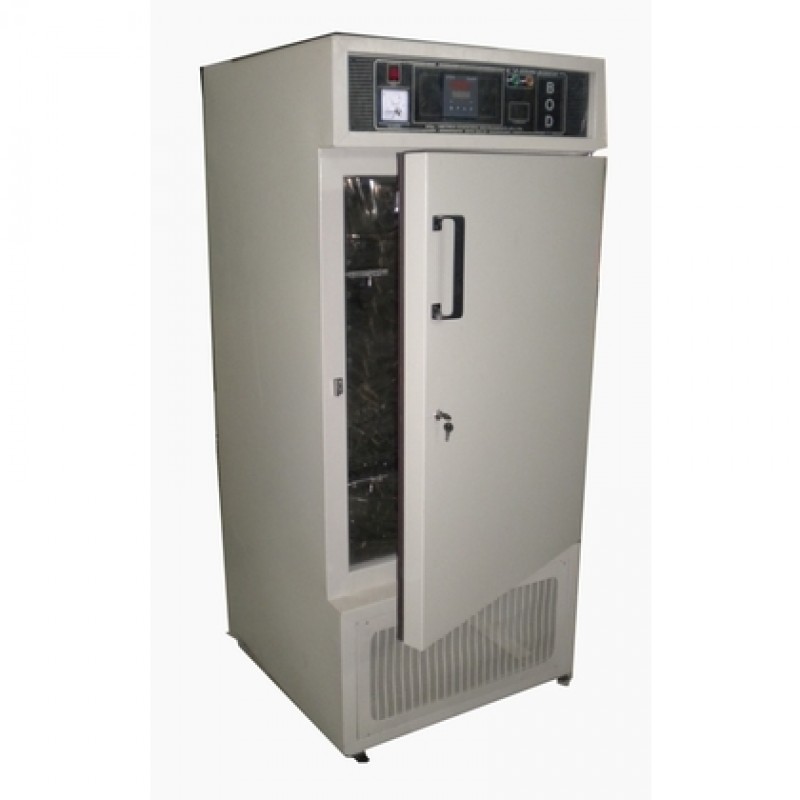

ZONOTECH B.O.D. COOLING INCUBATOR MODEL - ZBI50

Model - ZBI50

Technical Specification :

Doble walled inside stainless steel 304 & outside made of mild steel duly powder coated. chamber with self-support, allowing a wide range of self positions & spacing supplied with removable perforated stainless steel shelves. Full view inner crylic door allows inspection of simple without disturbing of the temperature of the working chamber. outer double-walled metal door with magnetic gasket, Lock & Key.

Door-operated illumination lamp, cabinet mounted on castor wheels, for ease of moment, Temp. controlled by microprocessor digital temp. indicator cum controller. Air circulating system is provided by F.H. motors with fan which keeps uniform temp. through out the chamber. in B.O.D. cooling incubator A quite running shield, CFC free compressor (ISI made) with all its protective devices along with a fan-cooled condensing unit placed below the working chamber. the control panel is provided at the top of cabinet three Nos. indicator for main, Heating & cooling, voltmeter, etc.


Technical Data

Model

Volume

(Cu.ft)

Inner working space

H x W  x  D  (mm)

No. of Shelves

Temp. Range



Recommended

Voltage stablizer

ZBI50A4Cu.ft.610x455x410mm       2

 5ºC to 60ºC

  2KVA
ZBI50B6Cu.ft830x505x415mm  3  5ºC to 60ºC        2KVA
ZBI50C10Cu.ft875x570x550mm  3  5ºC to 60ºC        3KVA
ZBI50D12Cu.ft900x650x580mm  3  5ºC to 60ºC        3KVA
ZBI50E15Cu.ft900x700x650mm  3   5ºC to 60ºC   3KVA
