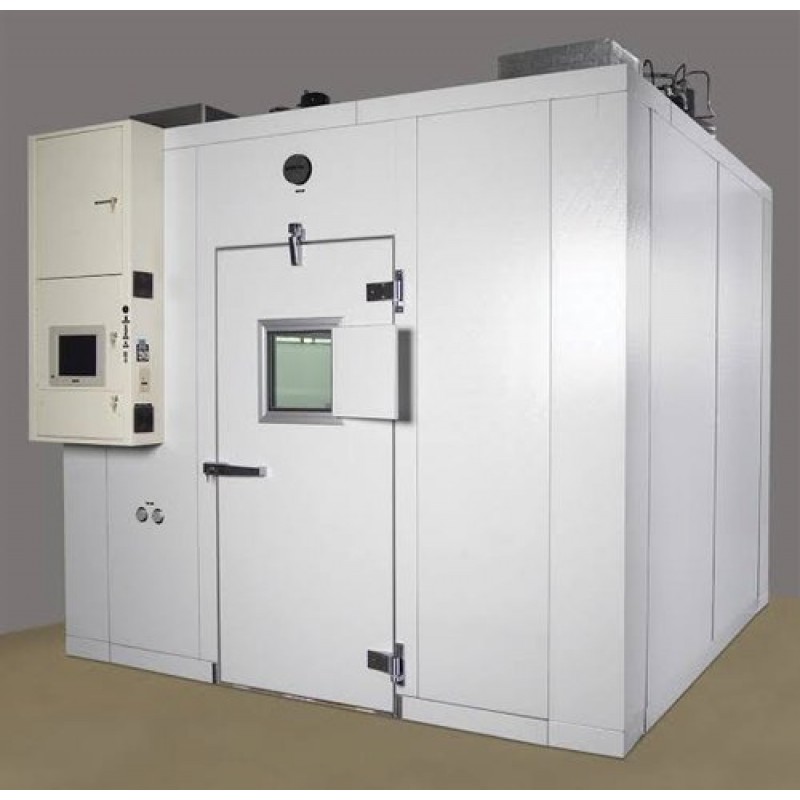

Walking Humidity Chamber
Product Details :
Brand | Wist |
Material | SS |
Shape | Rectangular |
Temperature Range | 20 deg C- 60 deg C |
Humidity Range | 40 Percentage-95 Percentage RH |
Automation Type | Automatic |
Height | 2000 mm |
Depth | 1500 mm |
Accuracy | +0.2 Percentage C / +2.0 Percentage RH |
Uniformity | +1.0 deg C / +3.0 Percentage RH |
Specification
- Temperature Range : 20°C to 60°C
- Temperature Accuracy : ± 0.2°C
- Temperature Uniformity : ± 1°C
- Humidity Range : 40% Rh to 95% Rh
- Humidity Accuracy : ± 2% Rh
- Humidity Uniformity : ± 3% Rh
- Double walled with 80mm PUF insulated modular panels with easy on-site assembly
- SS 304 Interior & Exterior either SS 304 or Pre Coated G. I.
- Stainless Steel Trays
- Observation window - 300 x 400 mm
- PVC strip curtain for reducing temperature leakages
- Heater line along the door to avoid condensation
- U-shaped SS tubular heaters
- Forced air circulation for uniform temperature
- Humidity is primarily controlled through the principles of Dew point control (for capacities>80000 L)
- CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
- System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room
- Stand by humidity system with booster humidification
- Complete Operations driven through PLC with data logging capacity of upto 1000 readings & email facility
- High speed Ethernet based communication
- All operations through a single 7" Color Touch Screen
- High quality imported make T/Rh combo sensor with 4-20 mA output
- Safety devices: Low & High temperature cut-off settable thermostats & high humidity cut-off settable hygrostat
- Audio/Visual alarms for deviations
- Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual Power supply: 415 volts 50 Hz main supply. Also available with 60 Hz Cycle
