WELDING FLUX DRYING / HOLDING OVEN

Product Details :

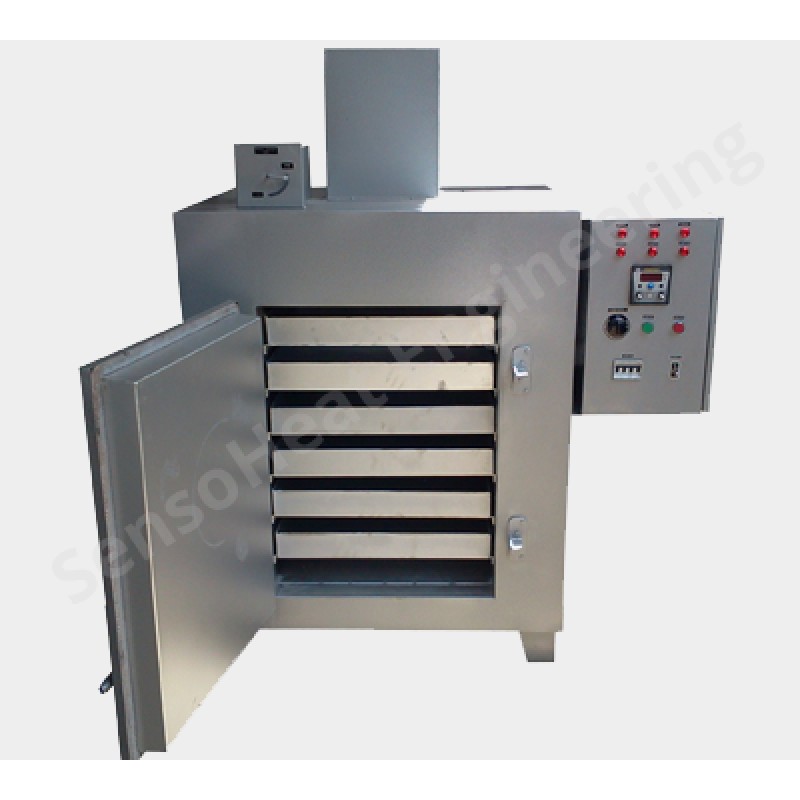

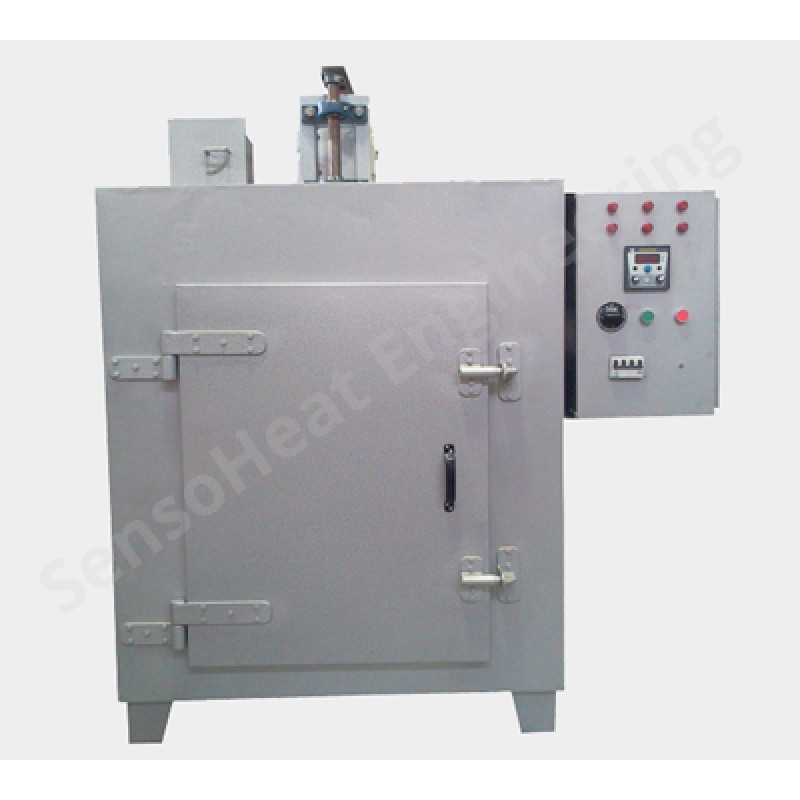

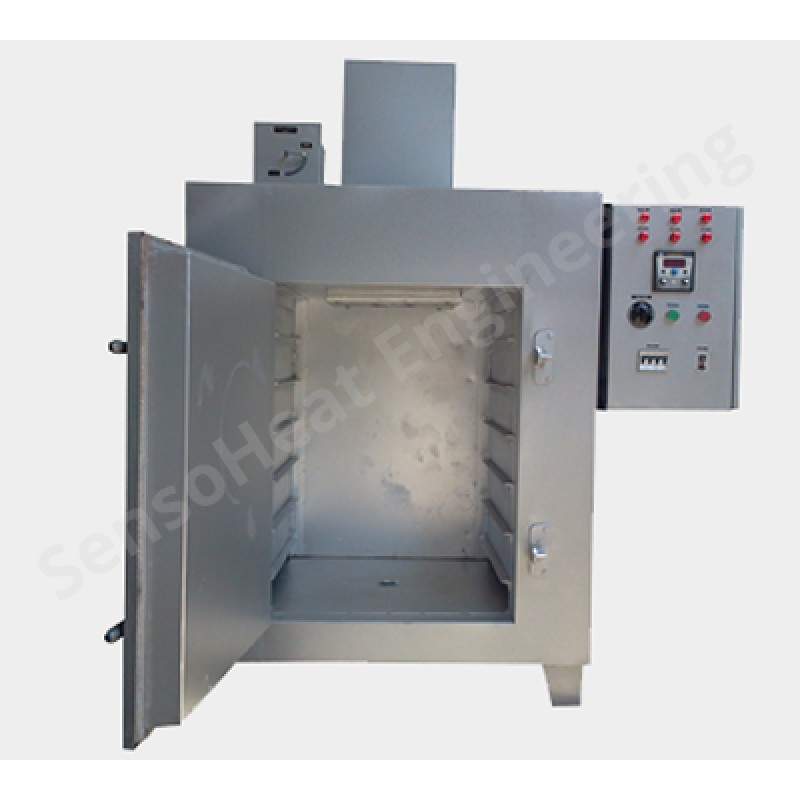

Bench / Floor Mounted-Front Loading models.

Made in INDIA and ruggedly constructed, Sensoheat submerged arc flux storage and rebake ovens are available in a variety of capacities to suit the most rigorous subarc welding operations. Our flux ovens have industry-leading heat up times due to our proprietary design, and can be found in a wide variety of industries.

• Capacity : 25kg, 50kg, 100kg, 500kg of welding flux.
• Temperature range : Ambient to 400oC
• Control : Digital On-off / Digital P.I.D. (optional)
• Air Circulation : Forced air circulation
• Operating Voltage : 230VAC / 415VAC

Straightforward operation with easy-to-use features.. Front Loading, as well as top-loading models, can be designed as per custom requirements.

WELDING FLUX DRYING / HOLDING OVEN

Floor mounted - Top Loading models..

Floor mounted - Top Loading models. This is a hopper-style, electric oven that is used for rebaking granulated submerged arc welding flux. It can be manufactured in varied storage capacities and a temperature range of Ambient-400oC. Usable Chamber constructed in S.S.304 grade material. Flux loading from top and outlet at bottom. No direct contact between Flux and Electrical Heaters. Inner chamber designed to ensure that the oven dispenses flux smoothly and completely through the bottom outlet valve.
