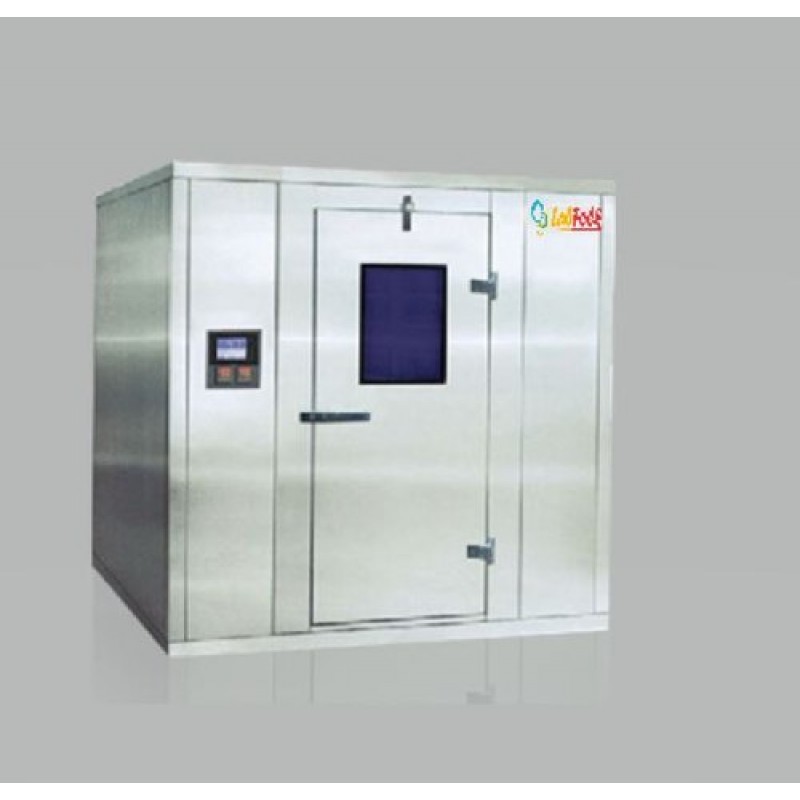

WALK IN BOD INCUBATOR

Model Name/Number	LF-WIC-BOD-INCUBATOR-2
Brand	Labfolk
Usage/Application	Laboratory, Pharma, Cosmetic, Healthcare, Rubber, Cement, Plastic, Medical, Research & Development
Size	240 x 136 x 200 (H x W x D cms)
Chamber Volume	6400 litre
Number Of Shelves	32
Temperature Range	5 to 60 degree celsius
Warranty	1 Year
Accuracy	+- 0.5 DegreeC
Country of Origin	Made in India
Minimum Order Quantity	1 Unit

Product Details:

Product Descriptions:

When your testing requires walk-in rooms, choose “Labfolk”, Controlled Temperature Solution. Our test rooms feature automated process control, energy efficiency, and a vast range of features and options. Every “Labfolk” BOD incubator features equipment that reliably produces required conditions, structural integrity that keeps the room working properly through years of demanding test cycles, and measuring/monitoring equipment that precisely records all test data.
Standard Models: Inner made of Stainless Steel (S.S.304) with mirror finish & Outer GI/MS duly powder coated.
GMP Models: Inner made of Stainless Steel (S.S.316) & Outer S.S.304 mirror finish.
Construction: Light weight Sandwich panel. Double walled construction with backside triple wall. 3” Thick PUF Insulation ensures stable temperature with humidity & reduced energy consumption. Motorized Blower at back side of the chamber for recirculation of air to develops unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber. Unique air flow assures quick recovery after door openings. Single Phase, TEFC , F-class insulation,1440 RPM, 230 Volts. High quality S.S. Tubular Heaters are used for better heating. Steam injection system & reservoir tank with water level arrangement with indicator.
Temperature Control: By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with PT100 sensor.
Safety Features: Additional Safety Digital controller to cut of supply in case temperature of overshoot. Audio & Visual alarm. Compressor ON delay timer (2 min.) to safe guard the compressor. In built over load protector provided for hermetically sealed compressor.
Refrigeration System: Refrigeration by means of CFC Free hermitically sealed Emerson Copland make compressor with R 134A for better cooling with ECO friendly refrigerant with time delay to safe guard compressor system. 50 mm validation port hole with silicon rubber seal to insert sensors for validation. Full view observation door with gasket to observe sample inside the chamber. Interior illumination for Working area Specially designed stainless trays ensure uniform temperature distribution.
Temperature Range : 5°C to 60°C
Temperature Accuracy : ± 0.5°C

Additional Information
Item Code :WIC-BOD-INCUBATOR
Delivery Time:7-8 Weeks
