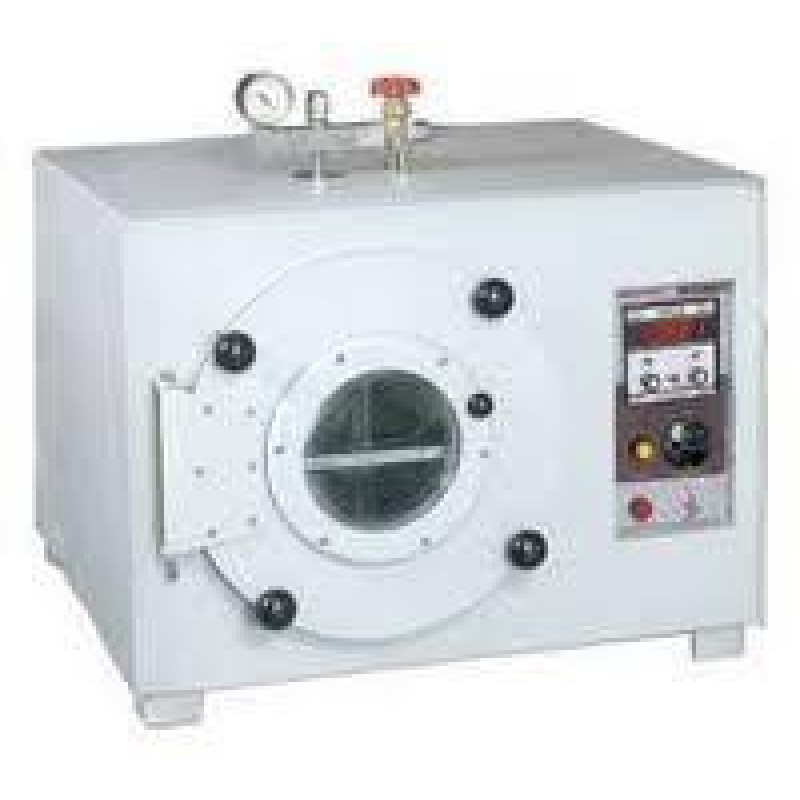

Vacuum Ovens
Product Details :
Outer chamber made of MS sheet finished with powder coating, inner made of SS with front door having glass window with heavy fittings and gasket to ensure vacuum sealing. Unit is fitted with vacuum dial gauge and Digital temperature indicator on the top. Vacuum stopcock with the nozzle for vacuum connection is provided. The chamber is suitable to withstand the vacuum of –760 mm/Hg. Heater over the chamber is allowing the chamber to heat up on heat conductance principle.
- Temperature Range : 50°C to 200°C Maximum
- Temperature Accuracy : ± 1°C
- Controller : Microprocessor
- Working on 230 Volts 50 Hz AC single phase supply.
Model | Inner Size(cm) | Prices Per Unit Outer MS / Inner SS | Prices Per Unit Outer SS / Inner SS | ||
|
| Digital | Micro | Digital | Micro |
TVO – 01R | 30 DX 22.5 Ø | 35,200.00 | 40,000.00 | 49,200.00 | 58,150.00 |
TVO – 02R | 40 DX 30.0 Ø | 60,000.00 | 66,125.00 | 72,000.00 | 84,000.00 |
TVO – 03R | 45 DX 40.0 Ø | 71,100.00 | 77,150.00 | 99,350.00 | 1,15,500.00 |
TVO – 04S | 30 X 30 X 30 | 66,500.00 | 71,900.00 | 69,250.00 | 81,950.00 |
TVO – 05S | 35 X 35 X 35 | 94,100.00 | 1,00,500.00 | 105,950.00 | 118,600.00 |
TVO – 06S | 45 X 45 X 45 | 110,000.00 | 121,000.00 | 143,000.00 | 154,000.00 |
Vacuum Ovens
- Views: 60
- Vendor: Ranjan Lab Equipments
- Product Code: RLE0000007
- Availability: In Stock
- ₹0
Seller information
Ranjan Lab Equipments
- Ranjan Lab Equipments
- Mumbai, India
- Business Type :Manufacturer, Exporter
